RF LNA Low Noise Amplifier Module 50M-4GHz Wideband Radio Frequency FM HF VHF UHF Ham Radio Module CNC Shell 90mA Low Power Consumption with SMA Interface
1.This module is with classic low-noise amplifier tube design, the noise factor is as low as 0.6dB.
2. The gold-plated CNC shell can effectively dissipate heat and shield electromagnetism.
3. It can work in the wideband range of 50MHz-4GHz, with 17dBi high gain characteristics at 1GHz Frequency.

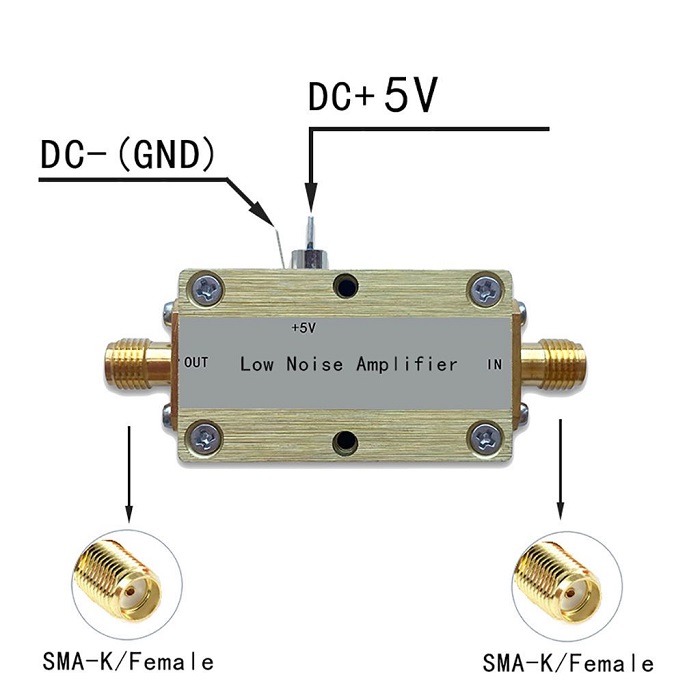

50M-4GHz Wideband RF Low Noise Amplifier Module
Main Parameter:
| Item | Specification |
| Model No.: | YXS-LNAMOD |
| Working Voltage: | +5V single power supply |
| Working frequency： | 50MHz-4GHz |
| P1dB output power: | 160mW (22dBm) |
| Gain： | 17dBi @ 1GHz（Please refer to the test curve data.） |
| The noise figure: | 0.6dB |
| Working current: | 90mA (low power consumption) |

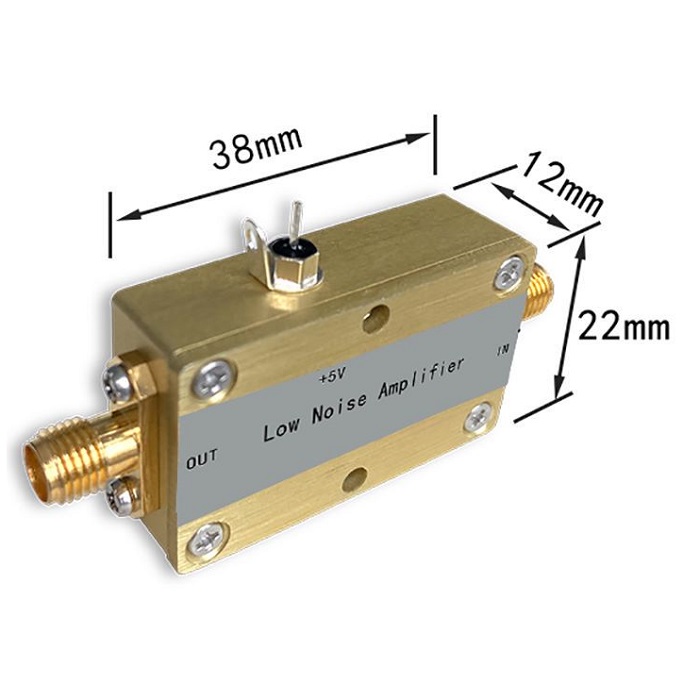

| Dimensions: | 38.2*22.4*12mm (without connector) |
Feature:
1.This module is with classic low-noise amplifier tube design, the noise factor is as low as 0.6dB.
2. The gold-plated CNC shell can dissipate heat and shield electromagnetism effectively.
3. It can work in the wideband range of 50MHz-4GHz, with 17dBi high gain characteristic at 1GHz Frequency.
Application:
This amplifier is widely used inused for high frequency or intermediate frequency preamplifier of radio receiver, and high sensitivity amplifying circuit of electronic detection equipment, as well as transceiver wireless communication card, tower mounted amplifier, combiner, repeaters, and distal/digital wireless wideband head equipment, etc.

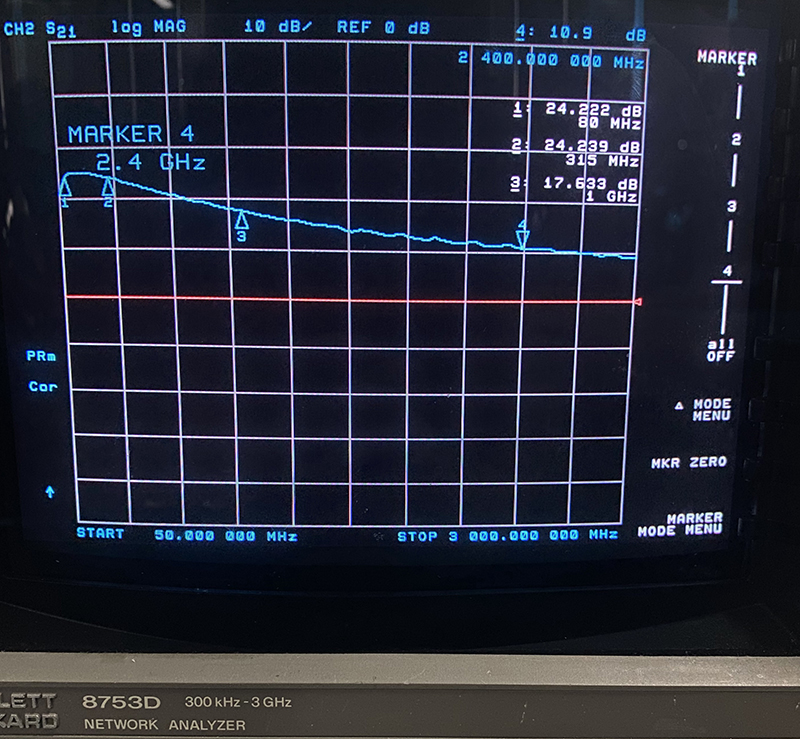

Measured curve:
MARK1: 24.2dB @ 80MHz
MARK2: 24.2dB @ 315MHz
MARK3: 17.6dB @ 1GHz
MARK4: 10.9dB @ 2.4GHz
For other frequencies without MARK points, please check the corresponding gain values against the following curves:
