2.4G Power Amplifier 2W Bi-directional Signal Amplification Module Bi-directional Auto-switching TDD Booster Module DEMO Board for WiFi/ZigBee Signal Enhancement
Application: Advertising machine, wireless network player, high-power wireless router, high-power wireless network card, high-power outdoor AP, wireless camera, etc

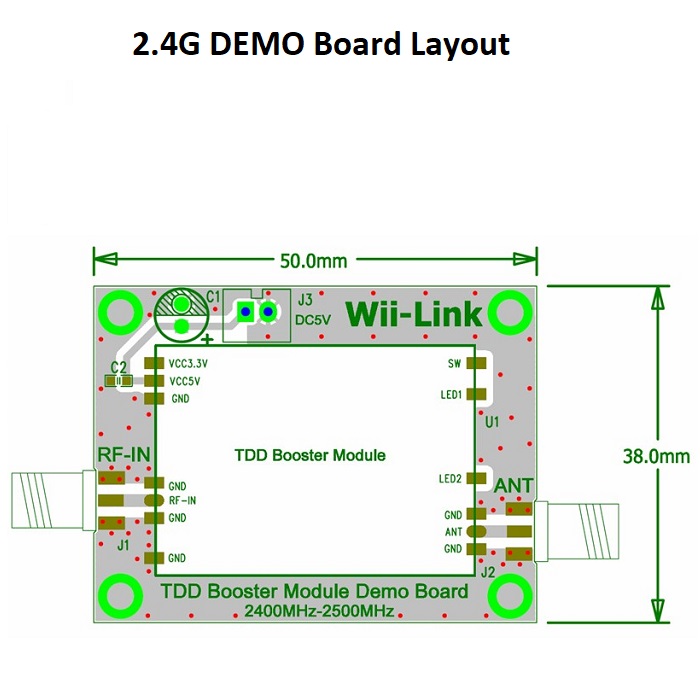

2.4G Bi-directional signal amplification Module DEMO Board
Main Parameter:
| Item | Specification |
| Model No.: | XQ-02A-DEMO |
|
RX gain: |
10dBi |
|
TX gain: |
11dBi |
|
Receiving noise figure： |
≤3.0dBi |
|
Input power: |
4dBm-20dBm |
|
The maximum transmit power (Peak Power): |
33dBm (2W) |
|
Patch Module Dimensions: |
36mm*26mm*4.8mm(L*W*H) |
Indroduction:
This bi-directional signal amplification module is specially designed for various applications at 2.4GHz frequency Range. Small size but extremely simple operation, which makes the RF part designing so easy! It has greatly shortened the product development lead time and reduced the cost.
Feature:
Built-in high-speed transceiver switching automatic discrimination circuit, can switch the transceiver status automatically. Do not need the WiFi control chip to give the control signal first, it can auto-work directly. So it is compatible with any WiFi programmes.
Application:
It can be applied to many kinds of equipments with special requirements for WiFi signal transmission distance and connection stability. Such as advertising machine, wireless network player, high-power wireless router, high-power wireless network card, high-power outdoor AP, wireless camera, etc.
