10W Power Amplifier Ultra-wideband Automatic Power Control RF Amplifier 80MHz–930MHz Unidirectional Signal Amplification for FM transmitting/VHF digital radio amplification/Wireless microphone
1. Wide range of working frequency band. It can work stablely between 80MHz - 930MHz range.
2.The highest output power up to 10W (40dBm @ 24V power supply).
3. Wide range of operating voltage with 9V-24V.
4. Built-in high-precision ADC. It can detect the working voltage automatically and adjust the final transmitting power according to the working voltage.
10W Unidirectional Signal Amplification
Main Parameter:
| Item | Specification |
| Model No. | YXS-AMP10W |
|

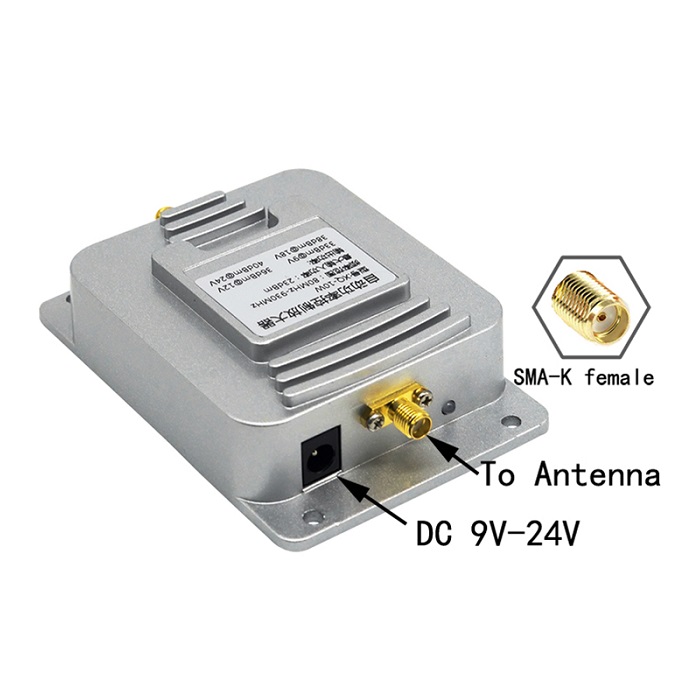

Working Voltage: |
9V~24V |
|
Working frequency： |
80MHz-930MHz |
|
The Max input power: |
23dBm |
|
The Max output power: |
40dBm |
|
The Max gain： |
25dBi @ 780MHz （Only refers to the gain when the signal strength is below ALC threshold.） |
|
ALC Range： |
14dBm~23dBm @ 700MHz |
|
The Max working current: |
≤1300mA |
|
Indication Status ： |
When 9V≤working voltage≤ 24V , green light is on. |
|
When working voltage ＜9V or ＞24V ,red light is on. |
|
|

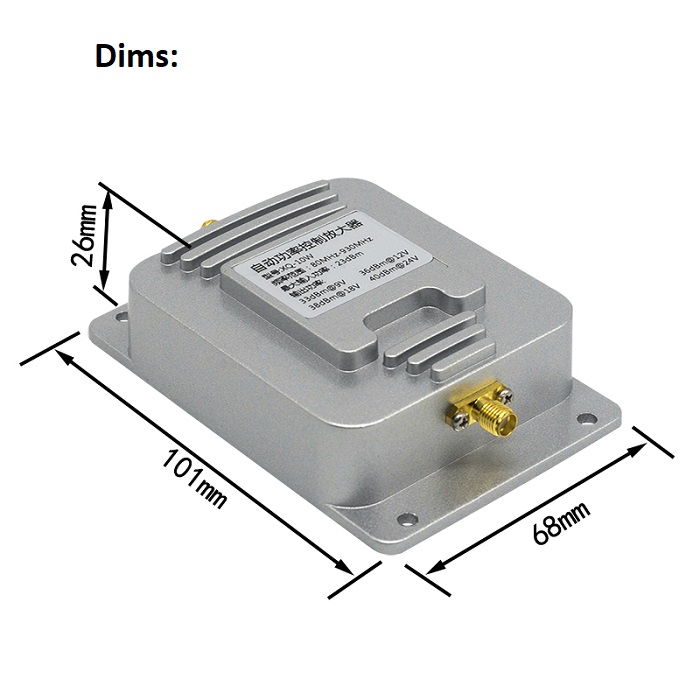

Dimensions: |
79mm*64mm*23mm(L*W*H) |

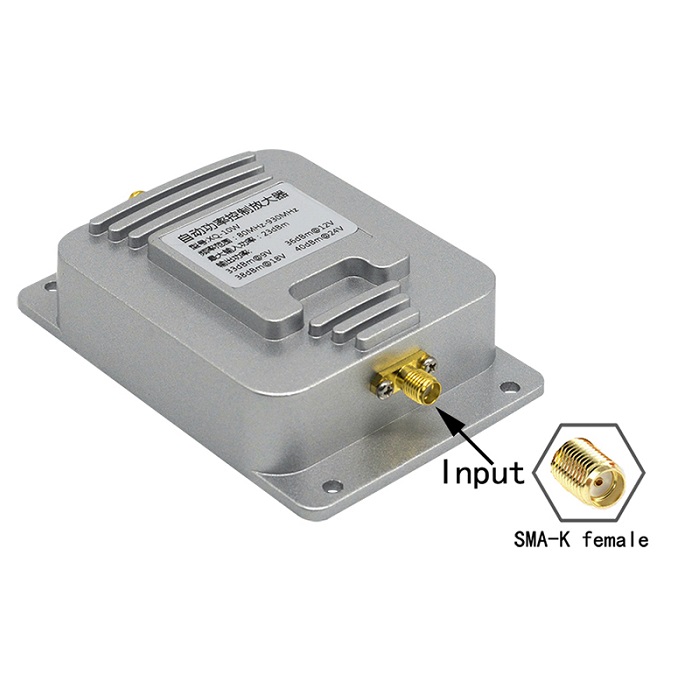

Introduction:
It is an ultra-broadband general-purpose RF amplifier specially suitable for Sub-1GHz band, with built-in high-performance automatic power control circuit, which can automatically adjust the actual output power according to the working voltage range, and can achieve the maximum power output without signal compression distortion in various supply voltage ranges.
Feature:
1. Wide range of working frequency band. It can work stablely between 80MHz - 930MHz range.
2.The highest output power up to 10W (40dBm @ 24V power supply).
3. Wide range of operating voltage with 9V-24V.
4. Built-in high-precision ADC. It can detect the working voltage automatically and adjust the final transmitting power according to the working voltage.
5. Built-in high reliability ALC circuit can automatically adjust the link gain within a certain range to ensure that the amplifier operate at maximum power output without distorting the signal.
6. The core component has high standing wave tolerance, even if the signal is totally reflected by disconnecting the antenna for a short period of time, the amplifier will not be affected by excessive standing waves. Even if the antenna is disconnected for a short period of time, the amplifier will not burn up because of the large standing wave, so the product is highly reliable.
Application:
It is mainly used for various occasions that need unidirectional signal amplification, such as FM transmitting, VHF digital radio amplification, 315MHz(433MHz) ASK/OOK/FSK modulation unidirectional remote control, 470MHz frequency band intercom amplification, VHF/UHF frequency band ultra-long distance wireless microphone, UHF frequency band campus radio wireless coverage system, ISM900MHz and ISM900MHz frequency band, ISM900MHz band and all kinds of teaching & researching band signal amplification.
