5.8GHz Power Amplifier FPV ImageTransmitter 2W Power Adjustable RF Signal Amplification for Airplane Helicopter Model / Remote Control Range Extending
1. The first 5.8G signal amplifier which can adjust the gain range.
2.Transmission power is controllable. In the case of short distance you can choose a lower transmission power to save battery life.

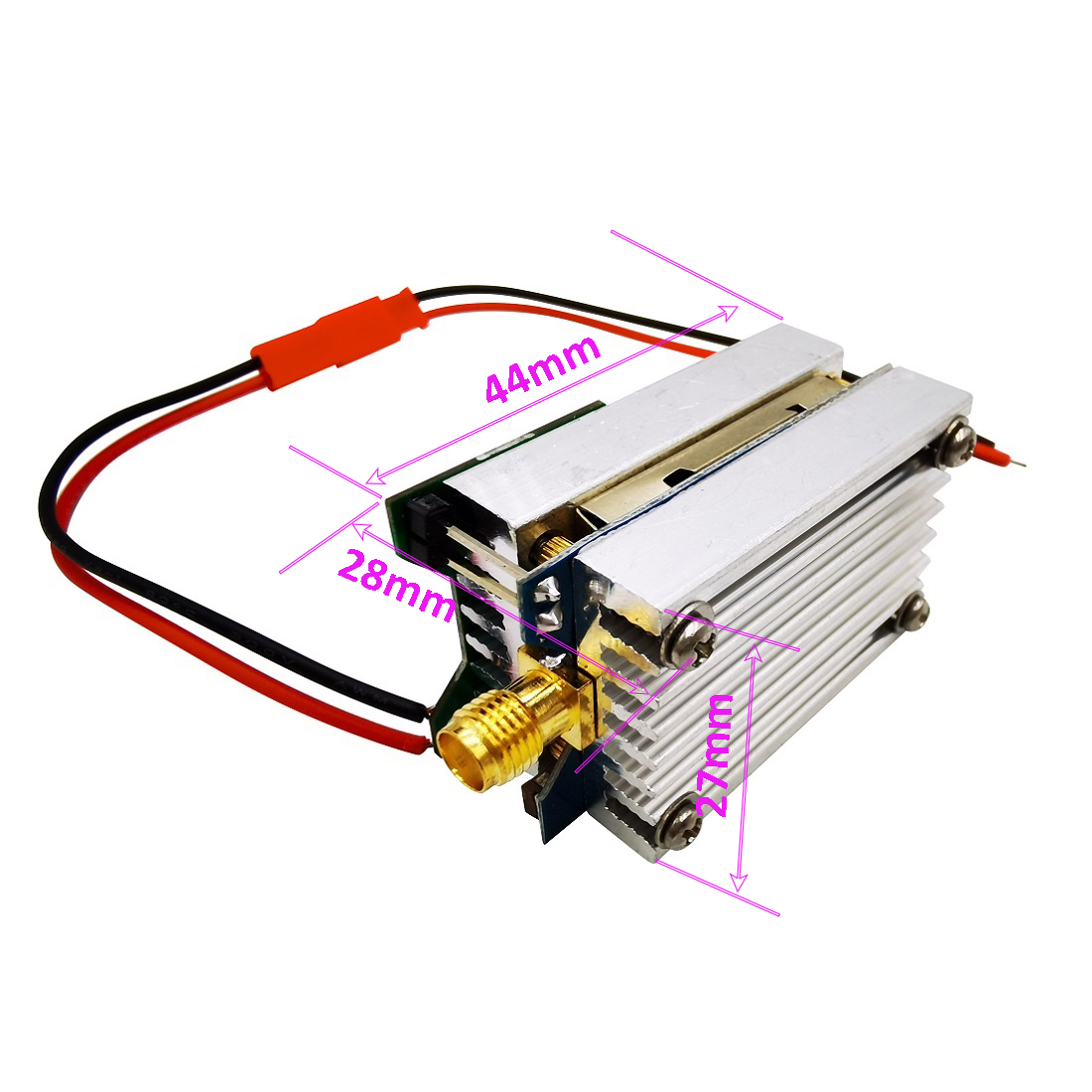

3. Small and light, only 44mm * 27mm * 28mm.
4. Transmission Power up to 2W.

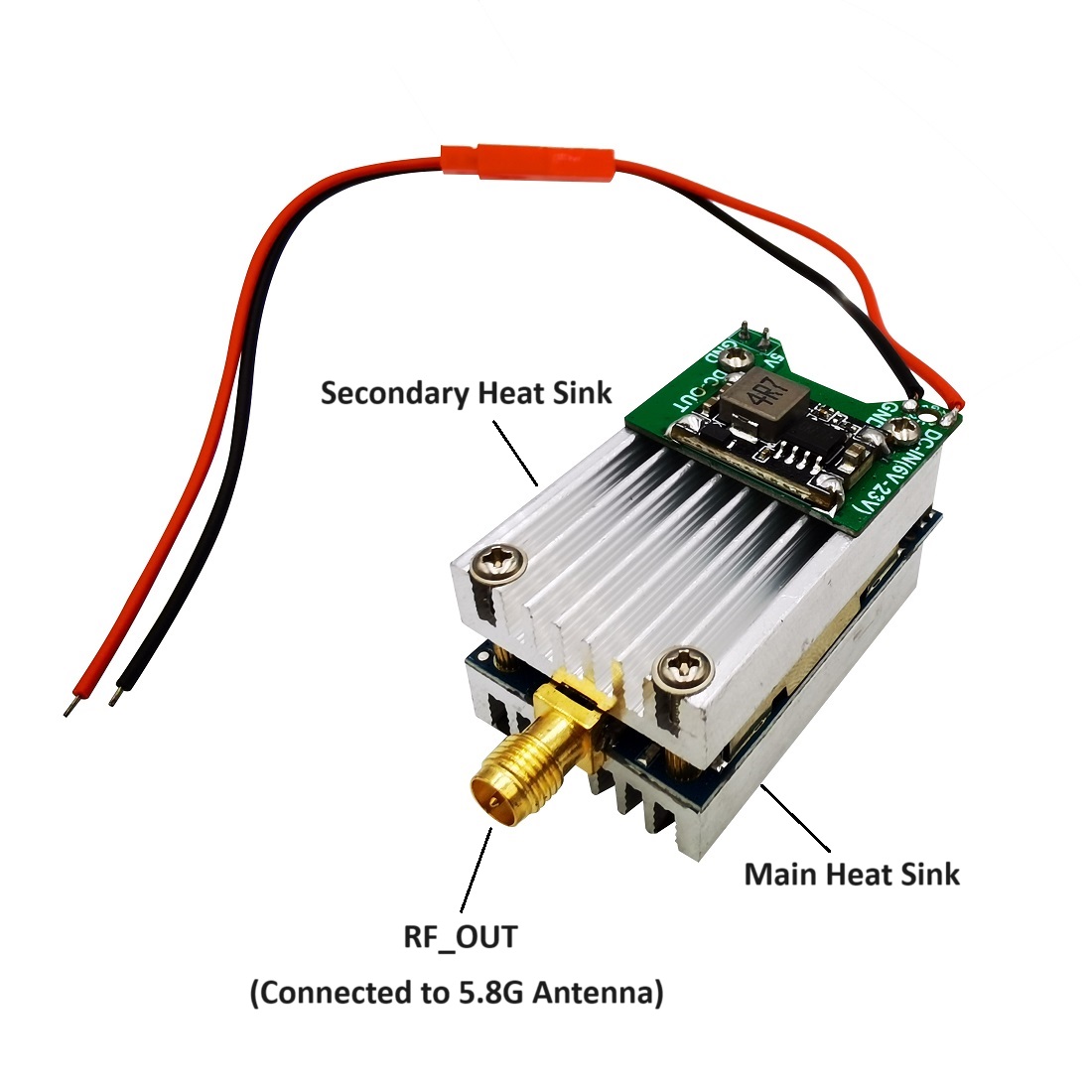

5. With double heat sink, support long-term reliable work without cooling fan.
6. Built-in high performance stabilizing module, work stable in 6V-23V.
Application: Remote control, airplane helicopter Model
5.8G Signal Amplification Module
Main Parameter:
|
Item |
Specification |
Remarks |
| Model No.: | YXS-AMP5.8G | |
|
Working Voltage: |
6V-23V |
|
|
Working frequency： |
5.60GHZ – 6.00GHZ |
5.00 GHz-5.60 GHz is workable as well. |
|
The Max input power: |
27dBm |
5.8G TX which in -3dBm-27dBm can use this amplification directly. |
|
The Max output power: |
33dBm (2w) |
|
|

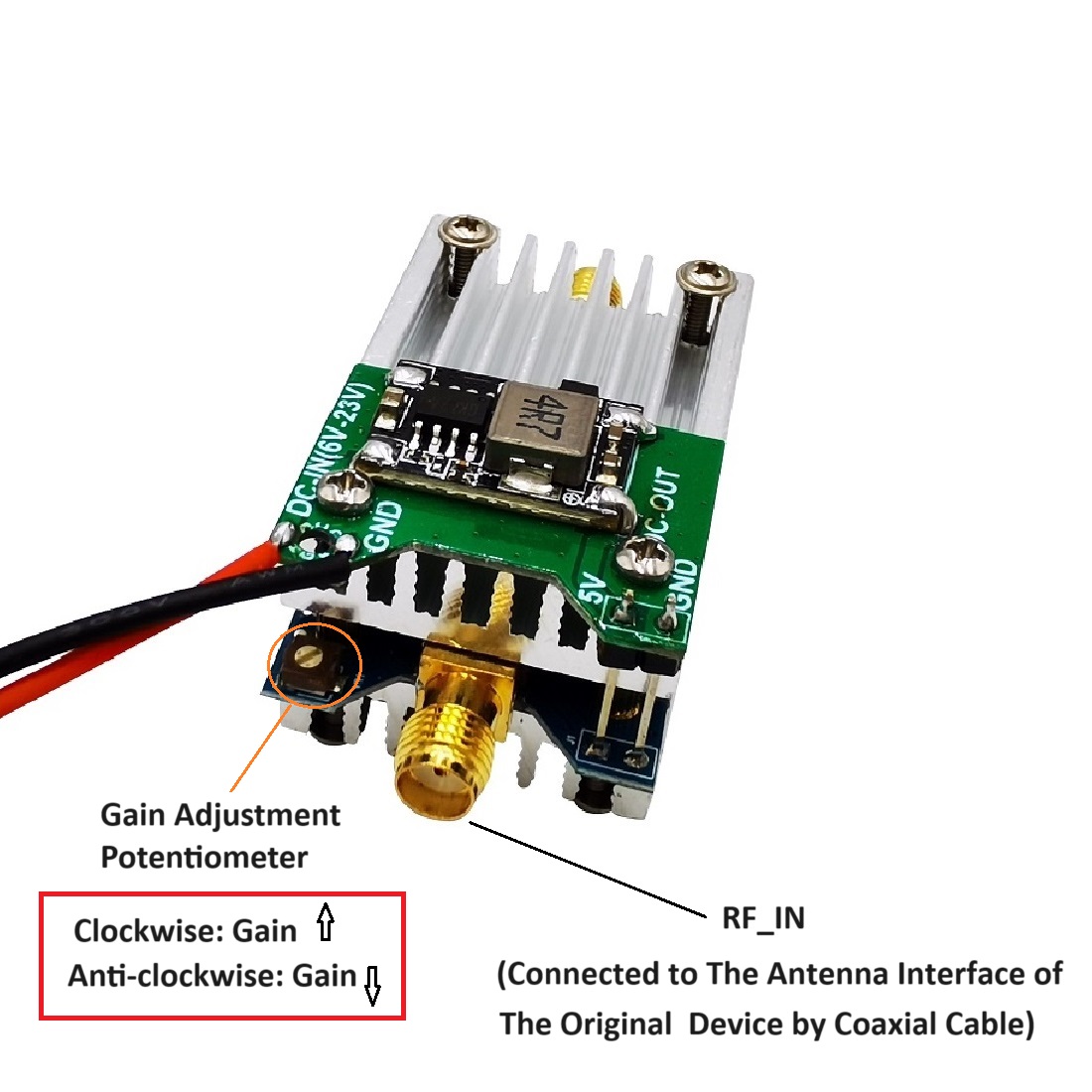

Gain adjustment range: |
3dB-6dB @ 5.60GHz-5.75GHz |
If there is extra heat sink, the gain will be up 2dBi higher. E.g: 5dB-8dB original gain will be up to 7dB-10dB after adding another heat sink. |
|
5dB-8dB @ 5.75GHz-5.85GHz |
||
|
3dB-7dB @ 5.85GHz-6.00GHz |
||
|
Net Weight: |
40g |
can remove the heat sink to reduce the weight. |
|
Dimensions: |
44mm*27mm*28mm (L*W*H) |
|
Feature:
1. The first 5.8G signal amplifier which can adjust the gain range.
2.Transmission power is controllable. In the case of short distance you can choose a lower transmission power to save battery life.
3. Small and light, only 44mm * 27mm * 28mm.
4. Transmission Power up to 2W.
5. With double heat sink, support long-term reliable work without cooling fan.
6. Built-in high performance stabilizing module, work stable in 6V-23V.
