2.4GHz WiFi Antenna 2.4G/5.8G Dual Band Built-in Copper Tube Antenna with 1.13mm Cable & IPX1 IPEX IPX Connector / Soldering pigtail for Wireless Network Router/ Bluetooth/ Wifi Module/ZigBee
2.4GHz WiFi Antenna 2.4G/5.8G Dual Band Built-in Copper Tube Antenna with 1.13mm Cable & IPX1 IPEX IPX Connector / Soldering pigtail for Wireless Network Router/ Bluetooth/ Wifi Module/ZigBee
【Application】This wireless antenna works with most wireless devices, such as 5GHz 5.8GHz FPV Camera Monitor, FPV Drone Racing Quadcopeter Controller, FPV Vedio Transmitter; 5GHz 5.8GHz Wireless AV Video Audio Sender TV Transmitter Receiver HDMI Extender,Wireless Network Router, WiFi AP Hotspot Modem, WiFi USB Adapter, WiFi Signal Booster Repeater, WiFi Range Extender, Desktop PC Wireless Mini PCI Express PCIE Network Card Adapter,WiFi IP Security Camera, Remote Monitoring and Control and etc.

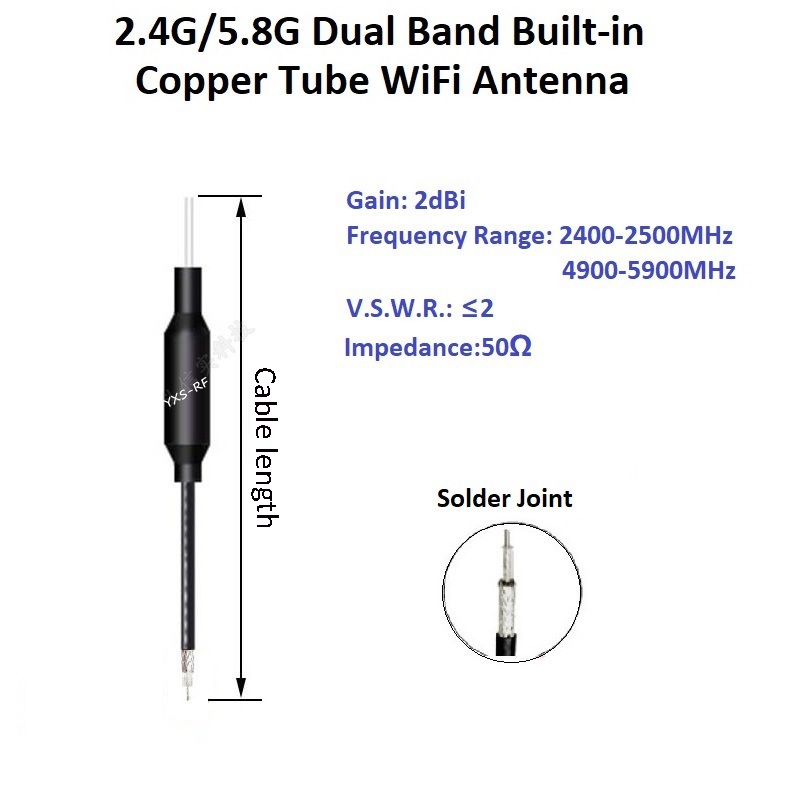

2.4G/5.8G WiFi Dual Band Antenna Built-in Copper Tube Antenna
Specification
Frequency: 2400-2500MHz/4900-5900MHz
Gain (dBi): 2dBi
V.S.W.R. :≤2
Impedance (Ω): 50
Radiation: Omni-directional
Polarization:Vertical
Connector: IPX 1/ PCB Solder Joint
Cable length: 5-30cm (length can be customized)
| Part No. | YXS-ANT5.8G-010CTSJ | YXS-ANT5.8G-010CTIPX |
| Image |  |
 |
