2.4G WiFi Antenna 2.4G/5.8G Dual Band Built-in PCB Antenna Adhesive Mount Antenna with 0.81mm/1.13mm Cable & IPX Connector/Soldering pigtail for WiFi Router/Signal Booster/Repeate/ Range Extender
2.4G WiFi Antenna 2.4G/5.8G Dual Band Built-in PCB Antenna Adhesive Mount Antenna with 0.81mm/1.13mm Cable & IPX Connector/Soldering pigtail for WiFi Router/Signal Booster/Repeate/ Range Extender
【Application】This wireless antenna works with most wireless devices, such as 5GHz 5.8GHz FPV Camera Monitor, FPV Drone Racing Quadcopeter Controller, FPV Vedio Transmitter; 5GHz 5.8GHz Wireless AV Video Audio Sender TV Transmitter Receiver HDMI Extender,Wireless Network Router, WiFi AP Hotspot Modem, WiFi USB Adapter, WiFi Signal Booster Repeater, WiFi Range Extender, Desktop PC Wireless Mini PCI Express PCIE Network Card Adapter,WiFi IP Security Camera, Remote Monitoring and Control and etc.
2.4G/5.8G WiFi Built-in PCB Antenna
Specification
Frequency: 2400-2500MHz/4900-5900MHz
Gain (dBi): 4dBi/5dBi
V.S.W.R. :≤2
Impedance (Ω): 50
Radiation: Omni-directional
Connector Type: IPX1/IPX3/IPX4/Solder Joint
Cable Type: 0.81mm / 1.13mm
Cable Length: 2.5cm~100cm ( Length can be customized)
Operating Temperature(℃) -20~+80
Warm Tip: The wire of IPEX 1 is φ1.13mm, the wire of IPEX 3 & IPEX 4 are φ 0.81mm.

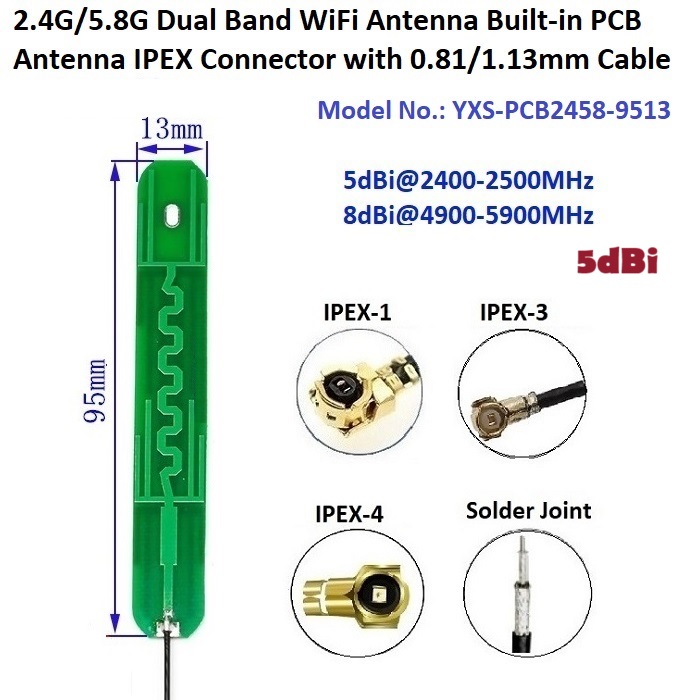

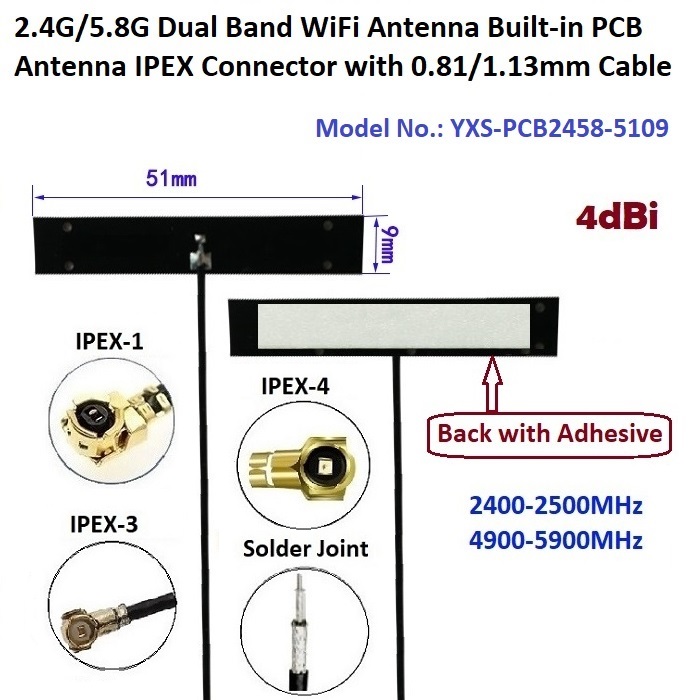

| Part No. | YXS-PCB2458-9513 | YXS-PCB2458-5109 |
| Image |  |
 |
