5G NR Antenna 5dBi 698-6000MHz Full-band Antenna Built-in PCB Antenna Adhesive Mount Antenna IPEX IPX Connector/SMA Male Connector with 1.13mm/RG178 Cable for Modem Wireless Router
5G NR Antenna 5dBi 698-6000MHz Full-band Antenna Built-in PCB Antenna Adhesive Mount Antenna IPEX IPX Connector/SMA Male Connector with 1.13mm/RG178 Cable for Modem Wireless Router
【Application】This wireless antenna support WCDMA,LET,DTU,5G,4G,3G,GSM,GPRS and etc. It can be used for ZTE CPE Huawei WIFI Router Modem.
5G NR Full-band Antenna Built-in PCB Antenna
Specification
Frequency range : 698-6000MHz
Gain : 5dBi
V.S.W.R : ＜ 1.5
Impedance : 50Ω
Power : 50W
Polarization mode : vertical
Connector Type: IPX 1/ IPX 3/ IPX 4/Solder Joint/SMA Male
Cable Type: RF1.13mm /0.81mm /RG178
Cable Length: 2.5cm ~100cm ( Length can be customized)
Application : GSM/GPRS/5G/4G/3G/NB-loT/DTU Network devices
Warm Tip: The wire of IPX & Soldering pigtail is RF1.13mm & 0.81 Cable, the wire of SMA Male Connector is RG178 Cable.

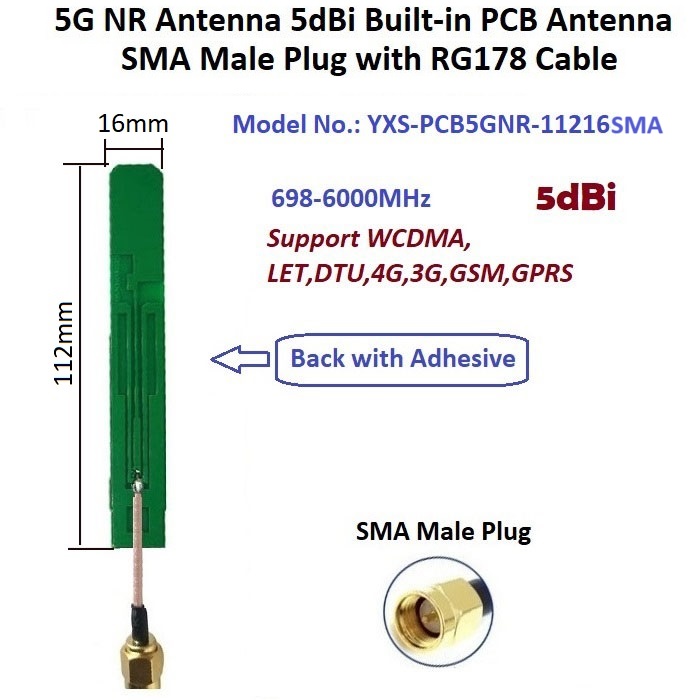

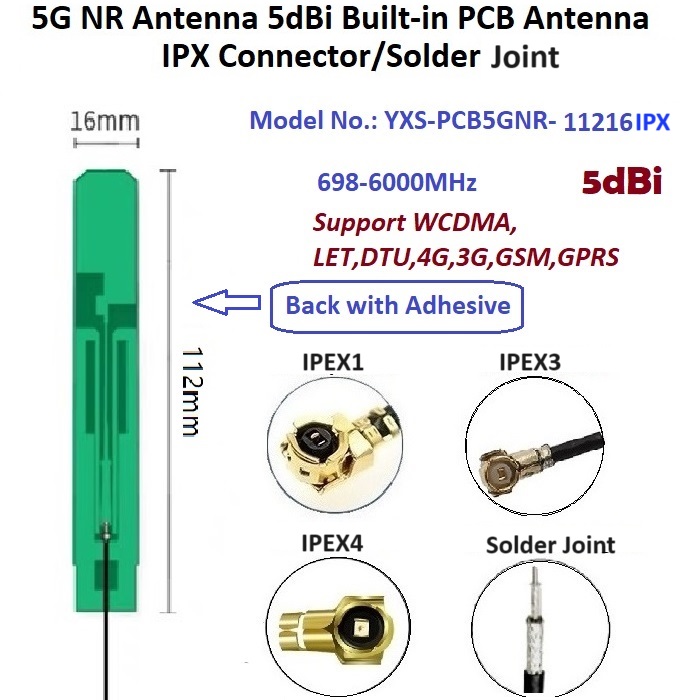

| Part No. | YXS-PCB5GNR-11216IPX | YXS-PCB5GNR-11216SMA |
| Image |  |
 |

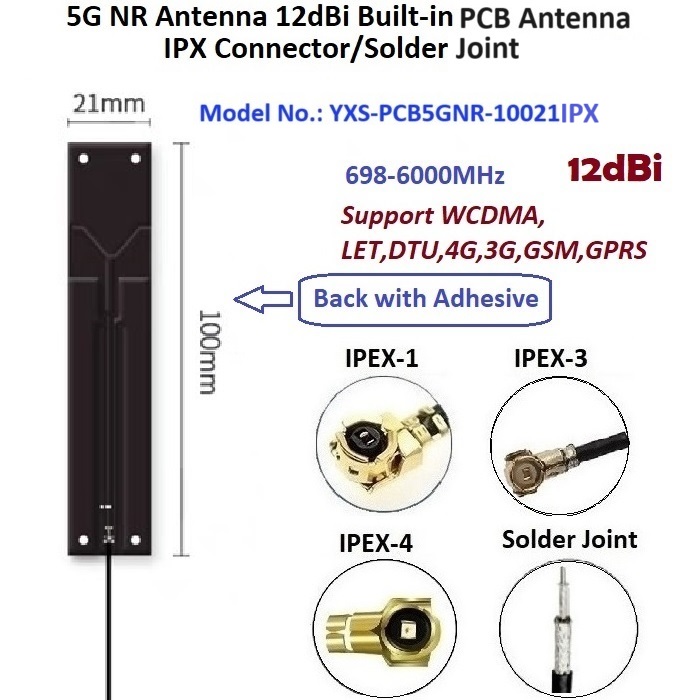

| Part No. | YXS-PCB5GNR-10021IPX | |
| Image |  |
