2.4G WiFi Antenna Built-in FPC Flexible Antenna Adhesive Mount U.fl IPX 1 IPX3 IPX4 IPEX Connector/ Soldering pigtail with 0.81mm/1.13mm Cable for Wireless Network Router/Bluetooth/ Wifi Module/ZigBee
2.4G WiFi Antenna Built-in FPC Flexible Antenna Adhesive Mount U.fl IPX 1 IPX3 IPX4 IPEX Connector/ Soldering pigtail with 0.81mm/1.13mm Cable for Wireless Network Router/Bluetooth/ Wifi Module/ZigBee
Application】This wireless antenna works with most wireless devices, such as Mini Wireless Card Routers / Repeater / Range Extender / Desktop PC / Mini ITX Build / PCI Card / FPV UAV Drone / PS4 Build / surveillance camera and etc. It also can be used as a 2.4GHz Bluetooth Antenna for Bluetooth Adapter, Bluetooth Audio HiFi Speaker Music System.
2.4G WiFi Built-in FPC Flexible Antenna
Specification
Frequency 2400 ~ 2500 MHz
V.S.W.R. <= 2.0
Gain: 2dBi/2.5dBi/3dBi/4dBi/4.5dBi
Impedance: 50 Ohm
Connector: IPX1/IPX3/IPX4/ Soldering Pigtail
Cable Type : 0.81 mm / 1.13 mm
Cable Length: 2.5cm~-100cm ( Length can be customized)
Operation Temperature - 40 °C ~ + 65 °C
Warm Tip: The wire of IPEX1 is φ1.13mm, the wire of IPEX3 & IPEX4 are φ0.81mm

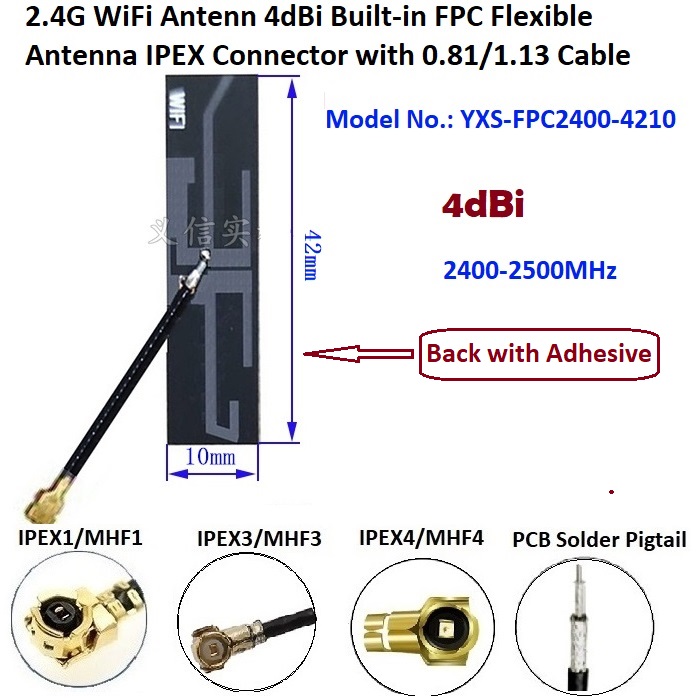

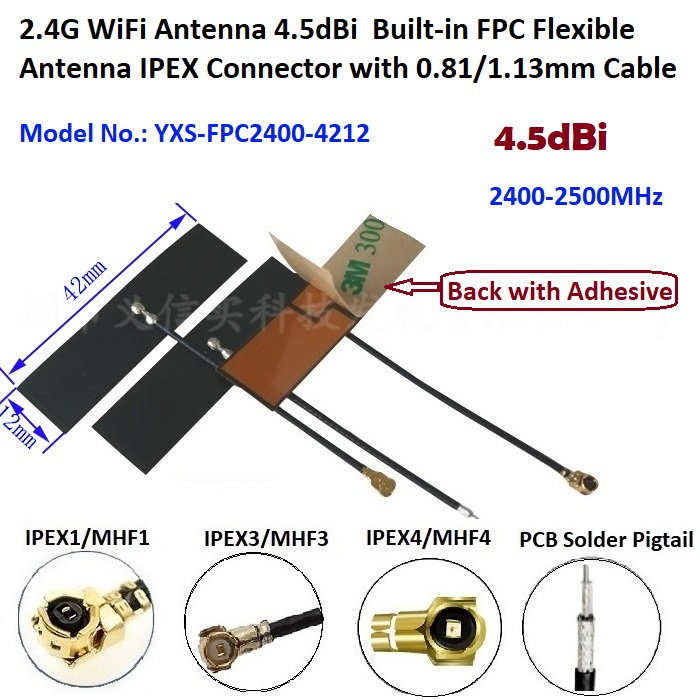

| Part No. | YXS-FPC2400-4212 | YXS-FPC2400-4210 |
| Image |  |
 |

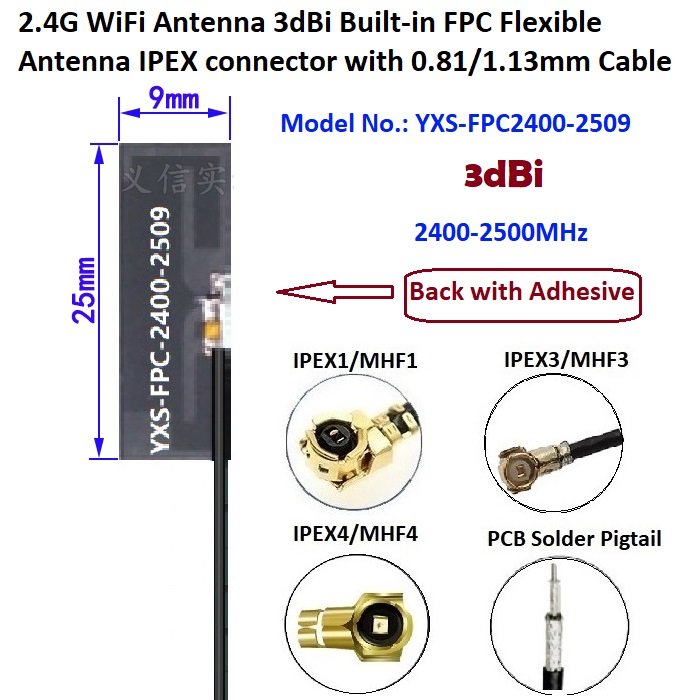

| Part No. | YXS-FPC2400-2509 | YXS-FPC2400-2218 |
| Image |  |
 |
| Part No. | YXS-FPC2400-1807 | YXS-FPC2400-4304 |
| Image |  |
 |

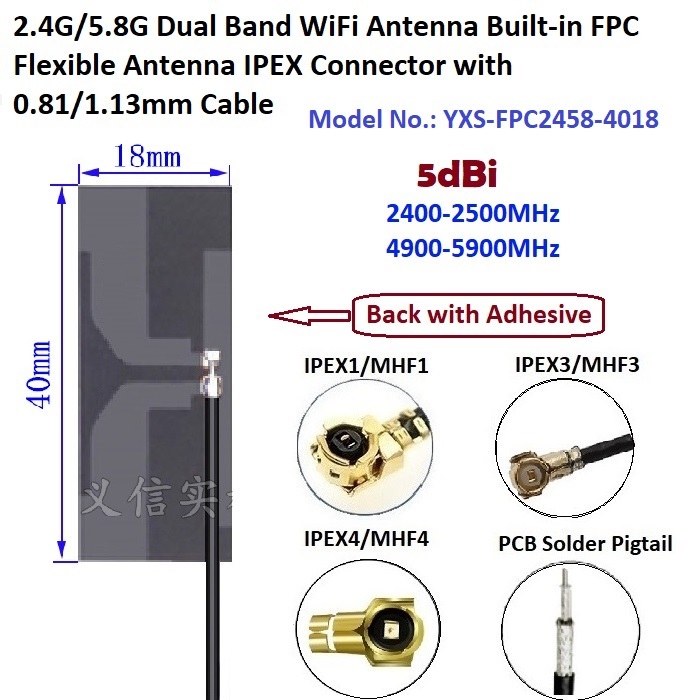

| Part No. | YXS-FPC2458-3709 | YXS-FPC2458-4018 |
| Image |  |
 |
