433MHz/470MHz Antenna LoRa Antenna Built-in FPC Flexible Antenna Adhesive Mount Antenna IPEX IPX Connector/Solder Pigtail with 1.13mm Cable for Remote controller/IOT/Lora
433MHz/470MHz Antenna LoRa Antenna Built-in FPC Flexible Antenna Adhesive Mount Antenna IPEX IPX Connector/Solder Pigtail with 1.13mm Cable for Remote controller/IOT/Lora
【Application】This wireless antenna works with most wireless devices, such as Wireless data transmission module, remote controller, smart home, wireless meter reading, IOT, Lora and etc.
433M/470M Antenna Built-in FPC Flexible Antenna
Specification
Frequency range: 400-460MHz/460-520MHz
V.S.W.R. ≦ 1.5
Impedance (Ω): 50
Gain (dBi): 3dBi/4dBi/6dBi
Polarization: Vertical polarization
Radiation: Omni-directional
Connector Type: IPX 1 / PCB Solder joint
Cable Type: RF1.13MM
Cable Length: 2.5cm~100cm ( Length can be customized)

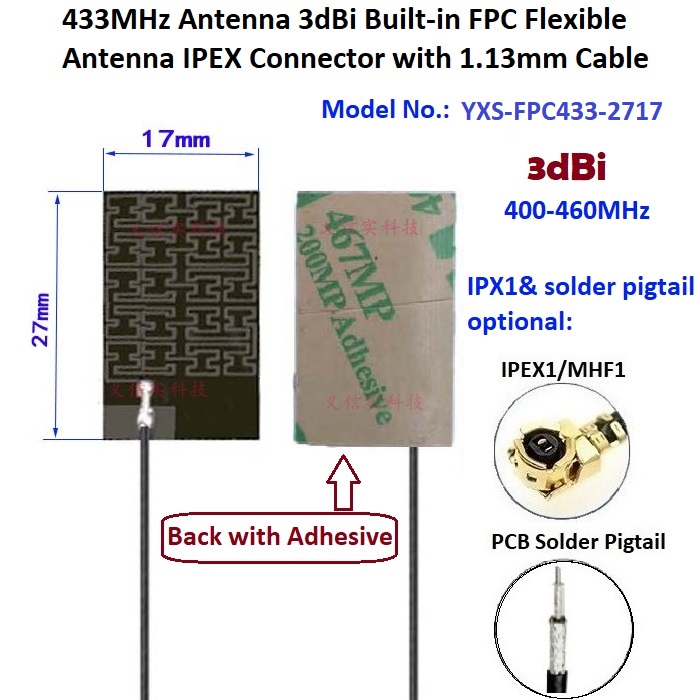

| Part No. | YXS-FPC433-2717 | YXS-FPC433-4617 |
| Image |  |
 |

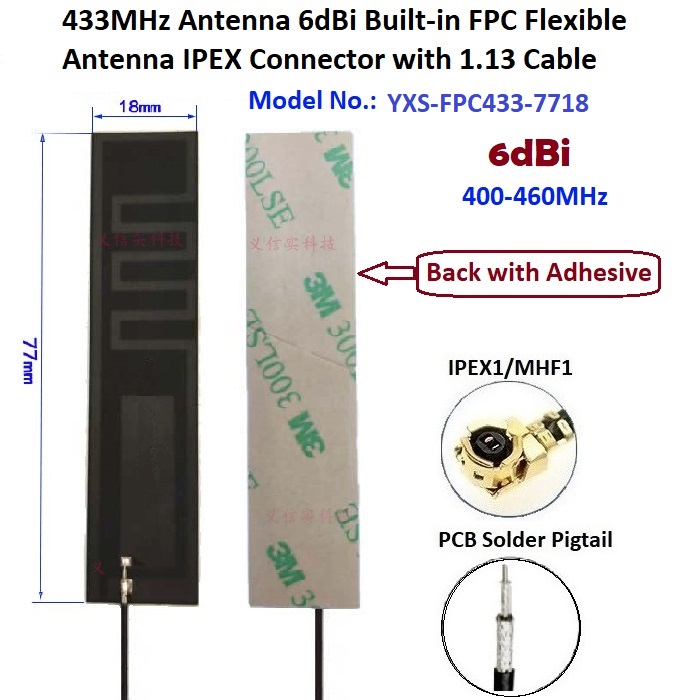

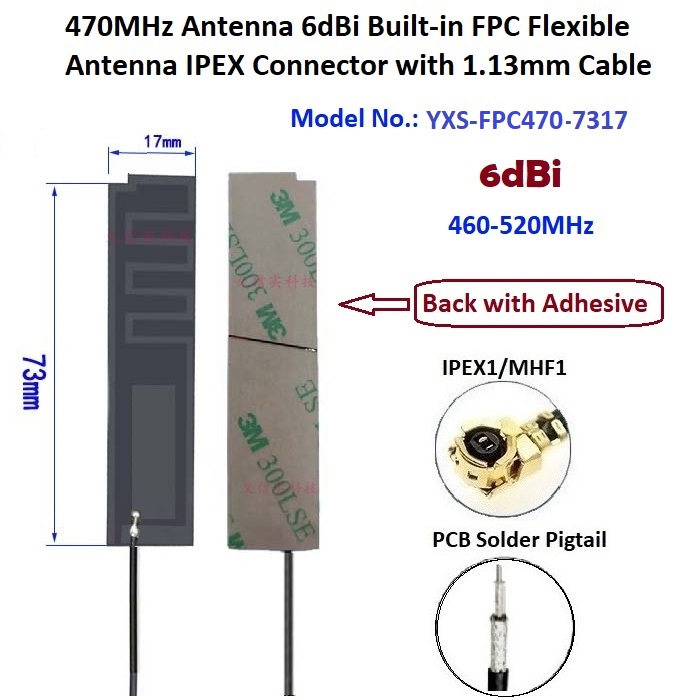

| Part No. | YXS-FPC433-7718 | YXS-FPC470-7317 |
| Image |  |
 |
