433MHz Antenna LoRa Antenna PCB Built-in Antenna Adhesive Mount Antenna IPEX IPX Connector with 1.13mm Cable for Wireless data transmission module/remote controller/wireless meter reading/IOT/LoRa
433MHz Antenna LoRa Antenna PCB Built-in Antenna Adhesive Mount Antenna IPEX IPX Connector with 1.13mm Cable for Wireless data transmission module/remote controller/wireless meter reading/IOT/LoRa
【Application】This wireless antenna works with most wireless devices, such as Wireless data transmission module, remote controller, smart home, wireless meter reading, IOT, Lora and etc.
433MHz Antenna Built-in PCB Antenna
Specification
Frequency range: 400-460MHz
V.S.W.R. ≦ 1.5
Impedance (Ω): 50
Gain (dBi): 2dBi/2.5dBi
Polarization: Vertical polarization
Radiation: Omni-directional
Connector Type: IPX 1 / PCB Solder Joint
Cable Type: RF1.13MM
Cable Length: 2.5cm ~100cm ( Length can be customized)

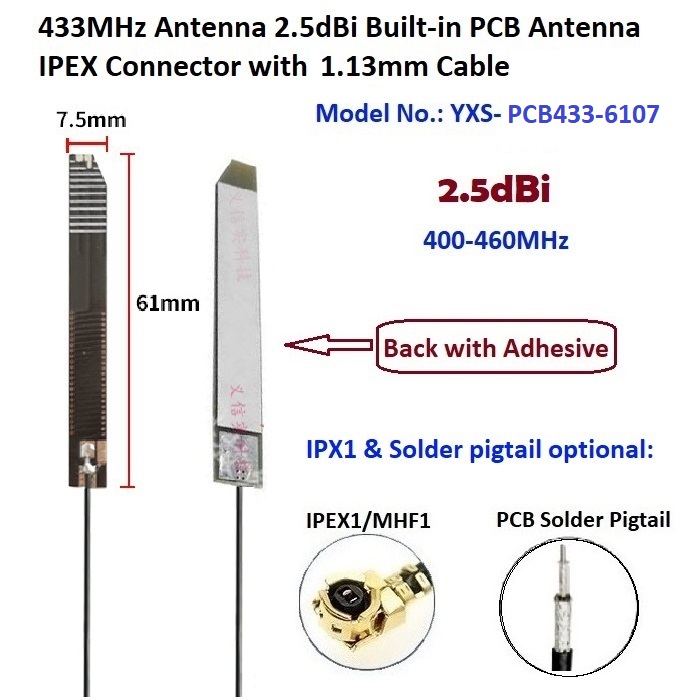

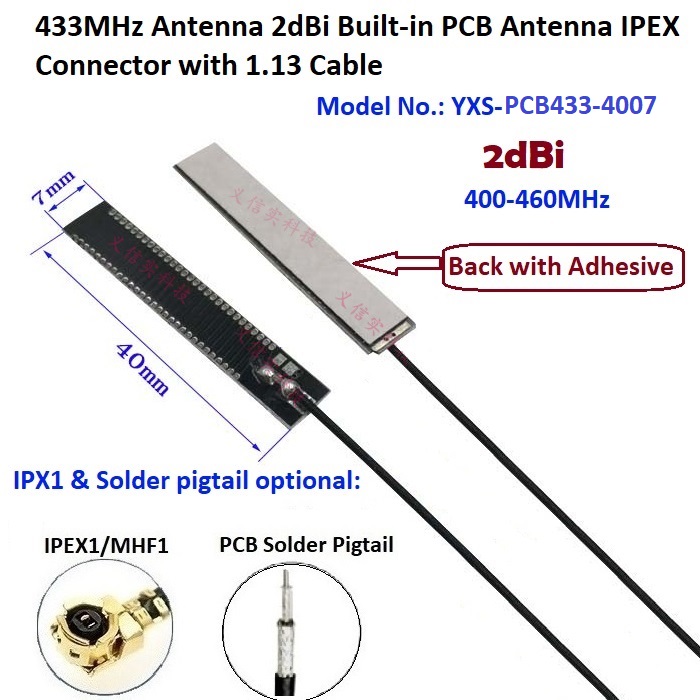

| Part No. | YXS-PCB433-4007 | YXS-PCB433-6107 |
| Image |  |
 |
