868MHz/915MHz SAW Bandpass Filter SMA Interface for RFID Remote Control/ IOT/ Helium Miner
868MHz/915MHz SAW Bandpass Filter SMA Interface for RFID Remote Control/ IOT/ Helium Miner
The 868M filter bandwidth is 2MHz, and the 915M filter bandwidth is 26MHz. The cut-off characteristics of these two filters are steep. It can effectively filter out out-of-band signals, reduce noise, and increase dynamic range.
868MHz/915MHz Bandpass SAW Filter Specification
Main Parameter:
|
Item |
Specification |
| Model No.: | YXS-SAWFLMOD |
|

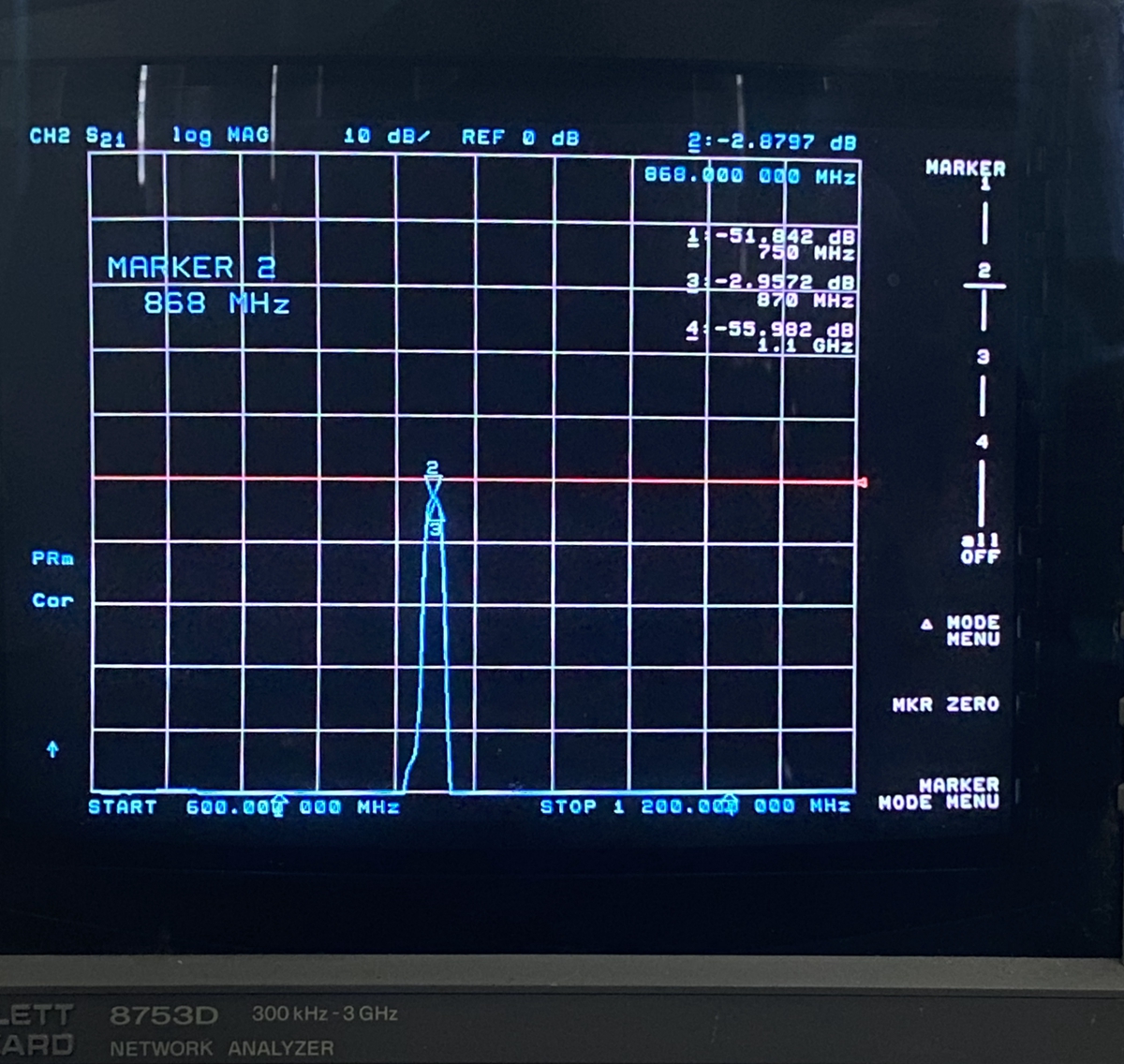

Passband |

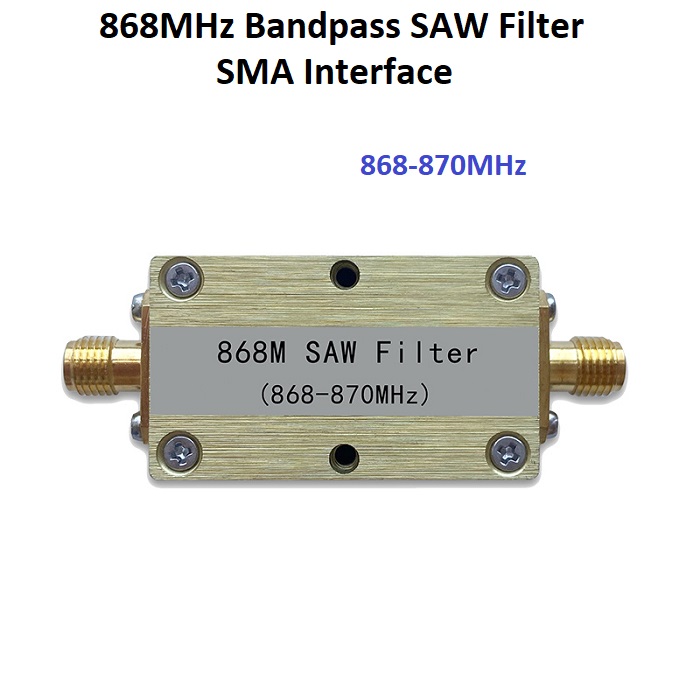

868 ~ 870 MHz |
|
Loss: |

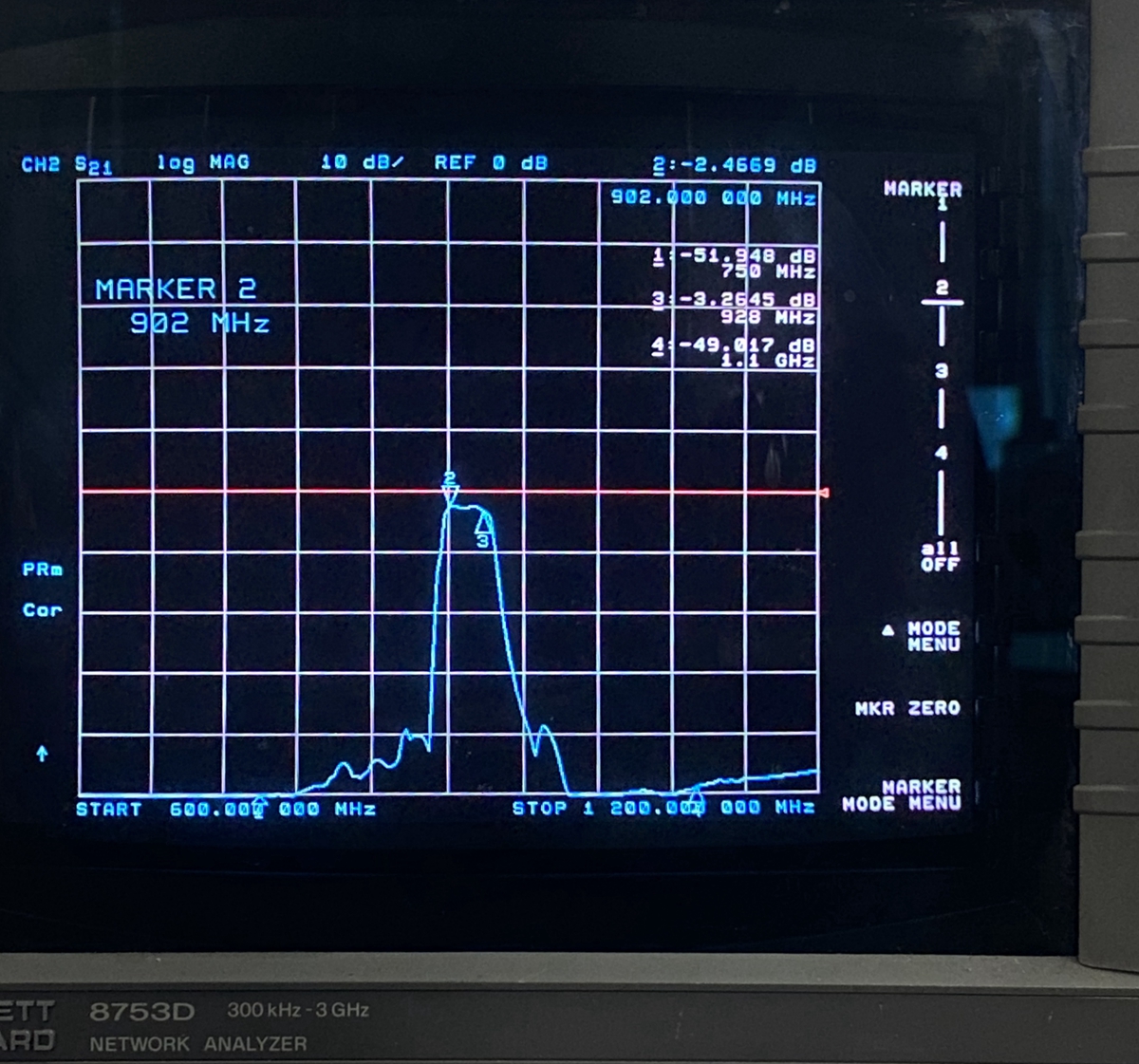

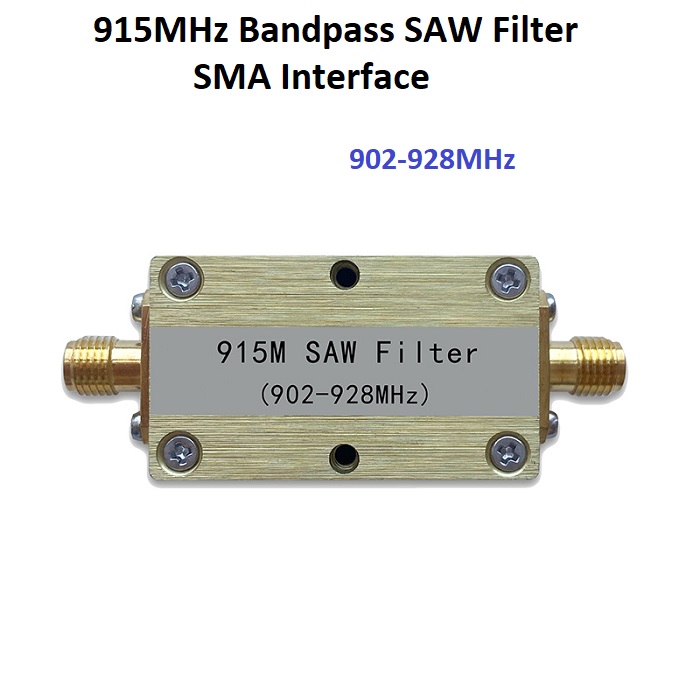

902 ~ 928 MHz |
|
In-band insertion loss: |
2.0 to 2.5 dB (typical value: 2.2 dB) |
|
The Max output power: |
40dBm |
|

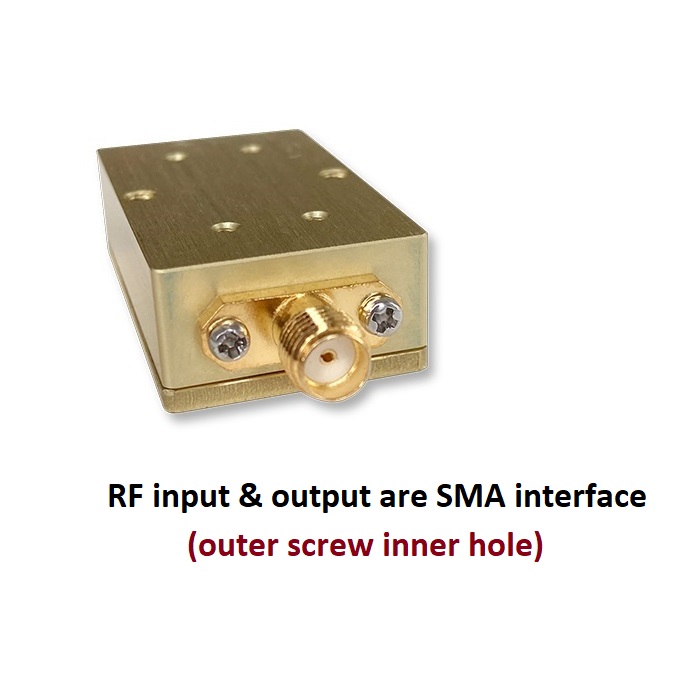

Interface: |
SMA outer screw inner hole |
Feature:
The 868M filter bandwidth is 2MHz, and the 915M filter bandwidth is 26MHz. The cut-off characteristics of these two filters are steep. It can effectively filter out out-of-band signals, reduce noise, and increase dynamic range.
Application:
This filter is mainly used for helium mining machine, IOT, RFID Remote control.
