2.4GHz WiFi Antenna 2.4G/5.8G Dual Band Antenna Foldable Rubber Antenna SMA Antenna with RP-SMA Male Connector for Wireless Network Router/ Bluetooth/ Wifi Module/ZigBee
2.4GHz WiFi Antenna 2.4G/5.8G Dual Band Antenna Foldable Rubber Antenna SMA Antenna with RP-SMA Male Connector for Wireless Network Router/ Bluetooth/ Wifi Module/ZigBee
【Application】This wireless antenna works with most wireless devices, such as 5GHz 5.8GHz FPV Camera Monitor, FPV Drone Racing Quadcopeter Controller, FPV Vedio Transmitter; 5GHz 5.8GHz Wireless AV Video Audio Sender TV Transmitter Receiver HDMI Extender,Wireless Network Router, WiFi AP Hotspot Modem, WiFi USB Adapter, WiFi Signal Booster Repeater, WiFi Range Extender, Desktop PC Wireless Mini PCI Express PCIE Network Card Adapter,WiFi IP Security Camera, Remote Monitoring and Control and etc.

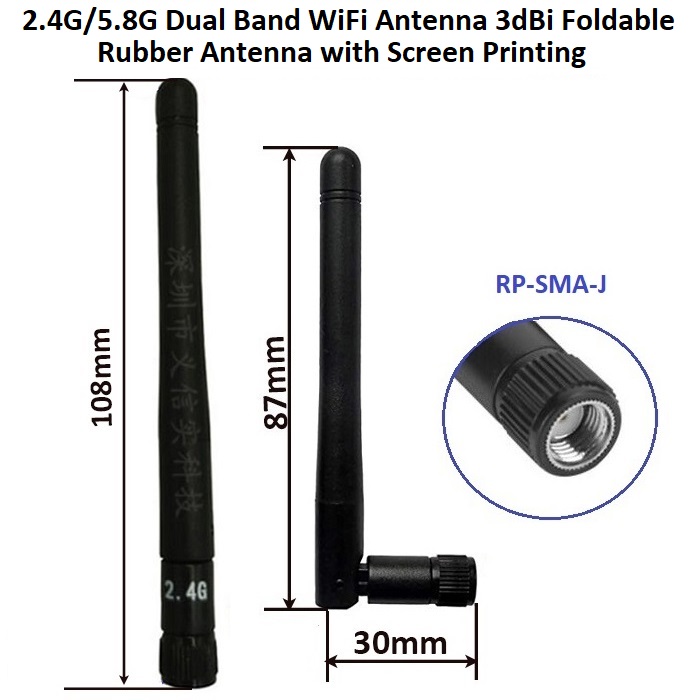

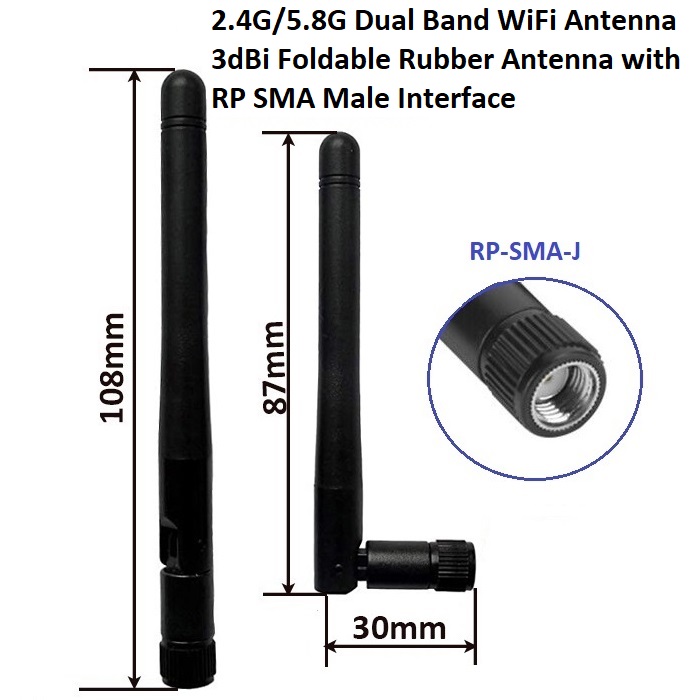

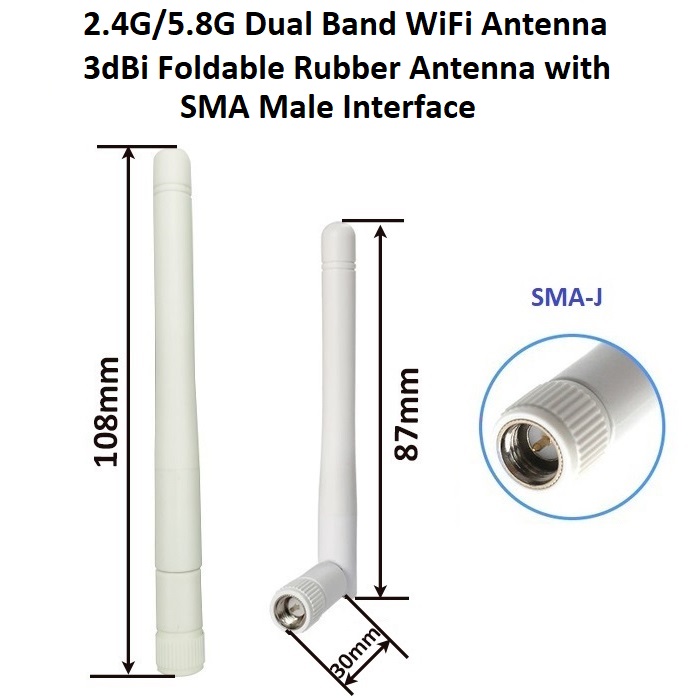

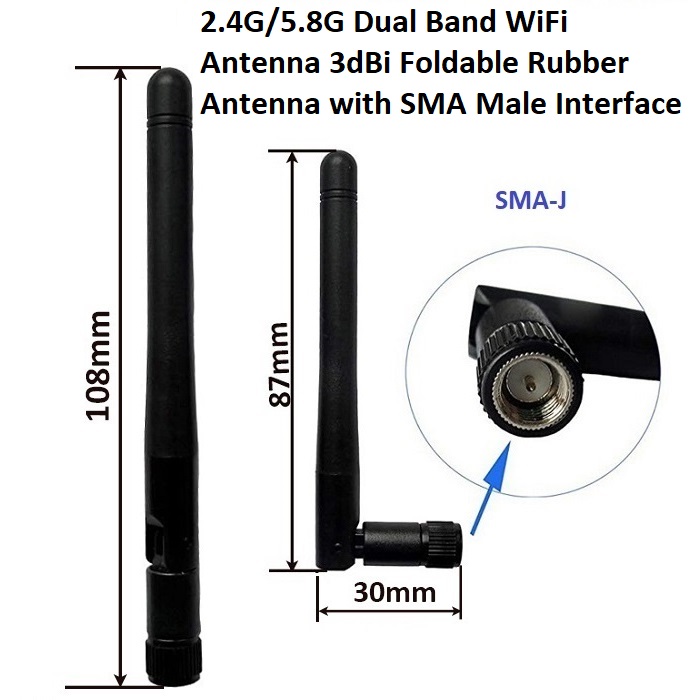

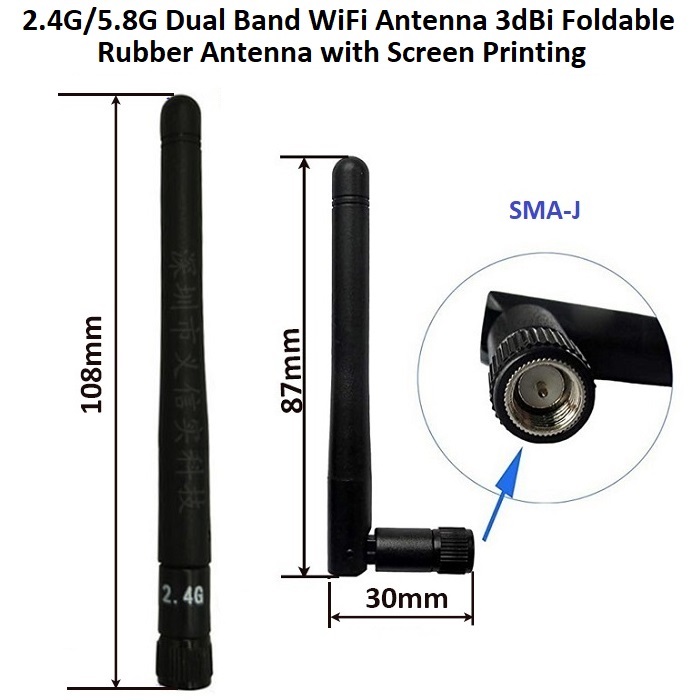

2.4G/5.8G WiFi Dual Band Foldable Rubber Antenna
Specification
Frequency: 2400-2500MHz/4900-5900MHz
Gain (dBi): 3dBi
V.S.W.R : ≤2
Impedance (Ω): 50
Radiation: Omni-directional
Polarization: Vertical
Connector: SMA-J, RP-SMA-J
| Part No. | YXS-ANT5.8G-001MBK | YXS-ANT5.8G-001FBK |
| Image |  |
 |
| Part No. | YXS-ANT5.8G-001MWH | YXS-ANT5.8G-001FWH |
| Image |  |
 |
| Part No. | YXS-ANT5.8G-001MBK | YXS-ANT5.8G-001FBK |
| Image |  |
 |
| Part No. | YXS-ANT5.8G-001MWH | YXS-ANT5.8G-001FWH |
| Image |  |
 |
