2.4G WiFi Antenna 2.4G/5.8G Dual band Magnet Antenna RP-SMA Male Connector Magnetic Mount Antenna SMA Antenna with Magnetic Stand Base & RG174 Cable for WiFi Router/Signal Booster/Repeater
2.4G WiFi Antenna 2.4G/5.8G Dual band Magnet Antenna RP-SMA Male Connector Magnetic Mount Antenna SMA Antenna with Magnetic Stand Base & RG174 Cable for WiFi Router/Signal Booster/Repeater
【Application】This wireless antenna works with most wireless devices, such as 5GHz 5.8GHz FPV Camera Monitor, FPV Drone Racing Quadcopeter Controller, FPV Vedio Transmitter; 5GHz 5.8GHz Wireless AV Video Audio Sender TV Transmitter Receiver HDMI Extender,Wireless Network Router, WiFi AP Hotspot Modem, WiFi USB Adapter, WiFi Signal Booster Repeater, WiFi Range Extender, Desktop PC Wireless Mini PCI Express PCIE Network Card Adapter,WiFi IP Security Camera, Remote Monitoring and Control and etc.
2.4G/5.8G WiFi Antenna with Magnetic Base
Specification
Frequency: 2400-2500MHz/4950-5900MHz
Gain (dBi): 7dBi/10dBi/12dBi
V.S.W.R. ≦ 2
Color: Black
Impedance (Ω): 50
Radiation: Omni-directional
Cable Length: 0.5-10m ( Length can be customized)
Connector Type: SMA-J, RP-SMA-J
Operating Temperature(℃) -20~+80

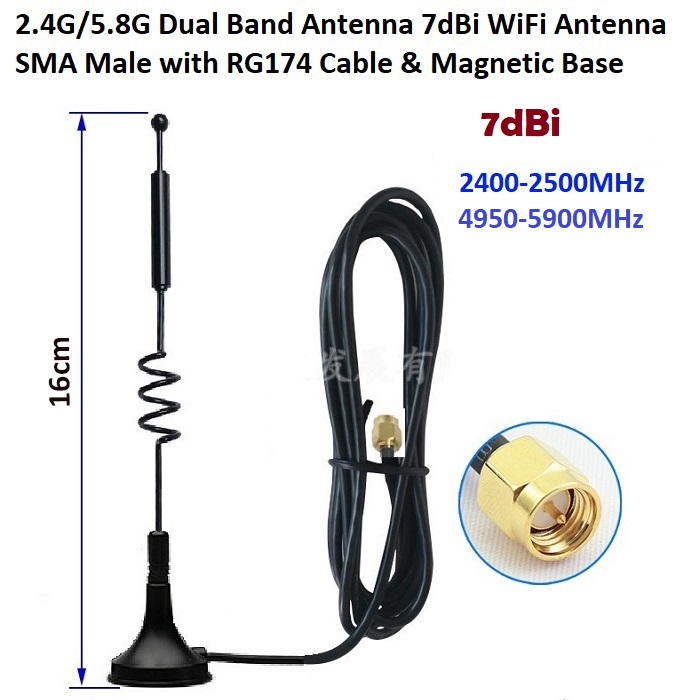

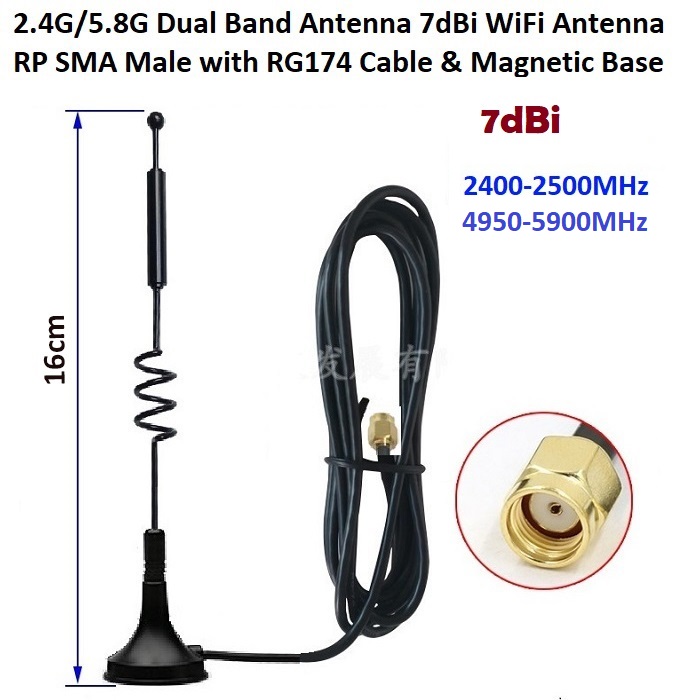

| Part No. | YXS-ANT5.8G-007MAG160M | YXS-ANT5.8G-007MAG160F |
| Image |  |
 |

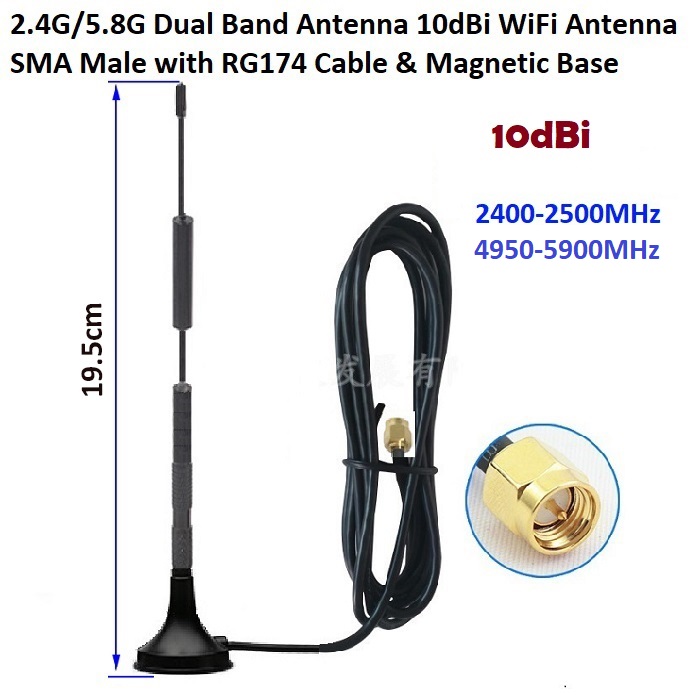

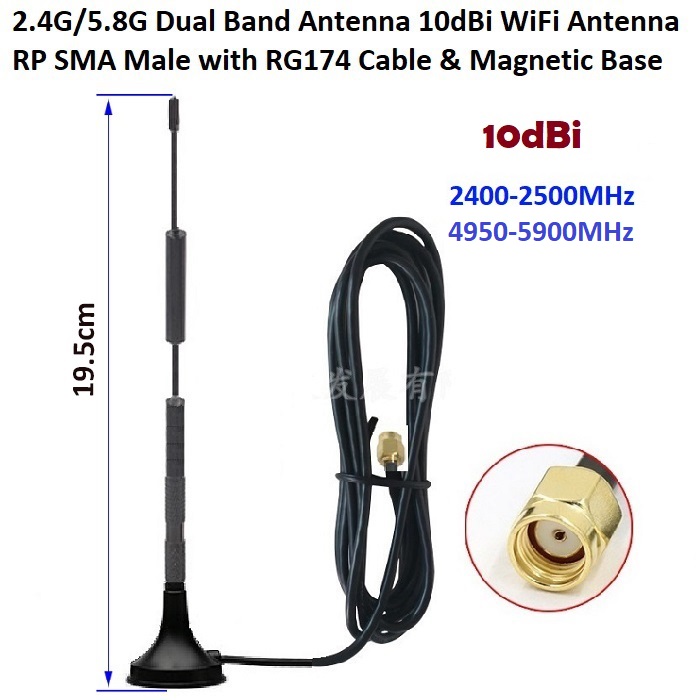

| Part No. | YXS-ANT5.8G-008MAG195M | YXS-ANT5.8G-008MAG195F |
| Image |  |
 |

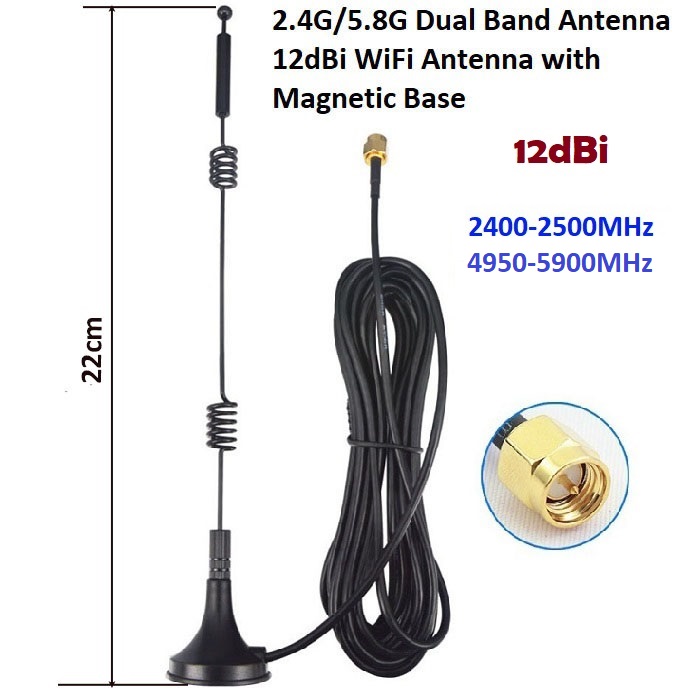

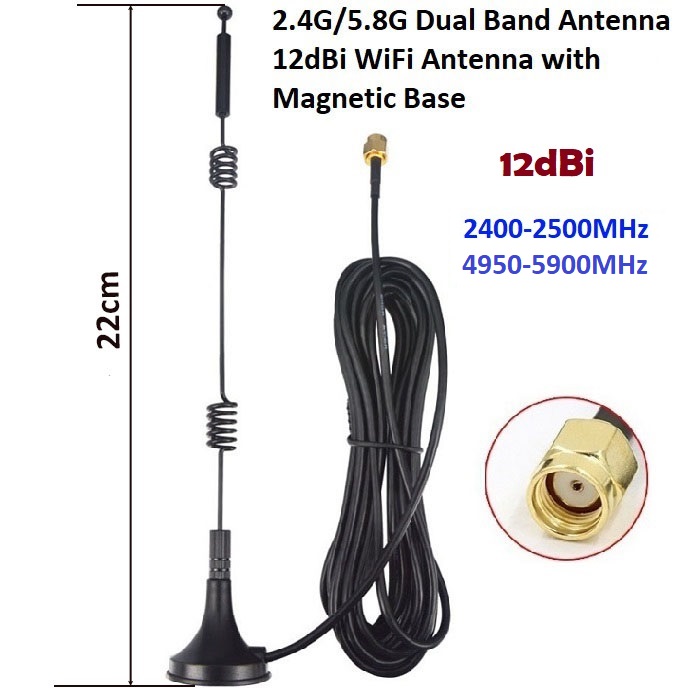

| Part No. | YXS-ANT5.8G-009MAG220M | YXS-ANT5.8G-009MAG220F |
| Image |  |
 |
