3dBi 2.4GHz Wireless Foldable Rubber Antenna Omni-Directional WiFi Antenna SMA Antenna RP-SMA Male Connector for Wireless Network Router/ Bluetooth/ Wifi Module/ZigBee
3dBi 2.4GHz Wireless Foldable Rubber Antenna Omni-Directional WiFi Antenna SMA Antenna RP-SMA Male Connector for Wireless Network Router/ Bluetooth/ Wifi Module/ZigBee
【Application】This wireless antenna works with most wireless devices, such as Mini Wireless Card Routers / Repeater / Range Extender / Desktop PC / Mini ITX Build / PCI Card / FPV UAV Drone / PS4 Build / surveillance camera and etc. It also can be used as a 2.4GHz Bluetooth Antenna for Bluetooth Adapter, Bluetooth Audio HiFi Speaker Music System.
2.4G Foldable 3dBi WiFi Antenna
Specification
Frequency: 2400-2500MHz
Gain (dBi): 3dBi
V.S.W.R. ≦ 1.5
Color: Black/White
Impedance (Ω): 50
Radiation: Omni-directional
Angle Adjustable: 90°, 135°, 180°

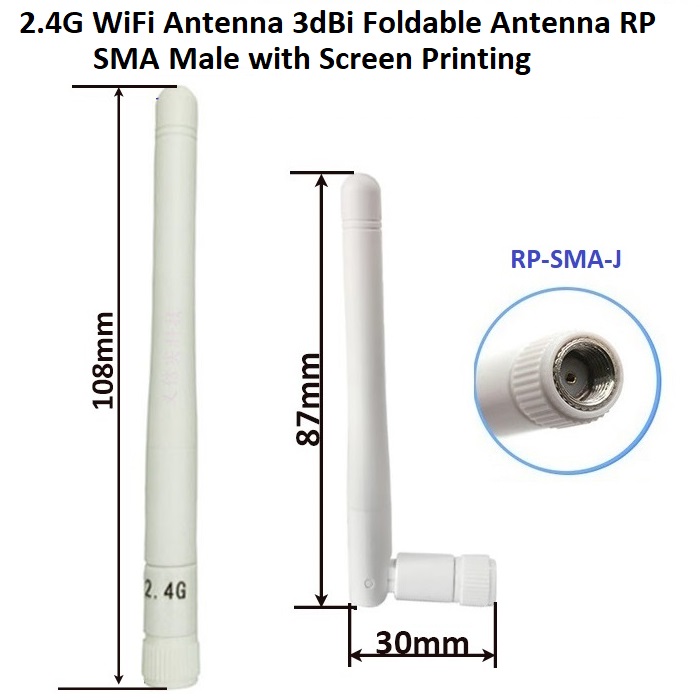

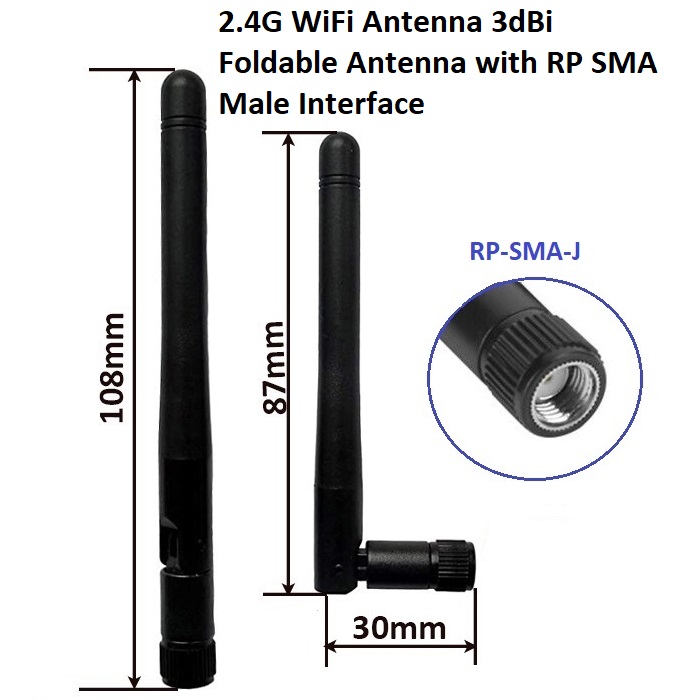

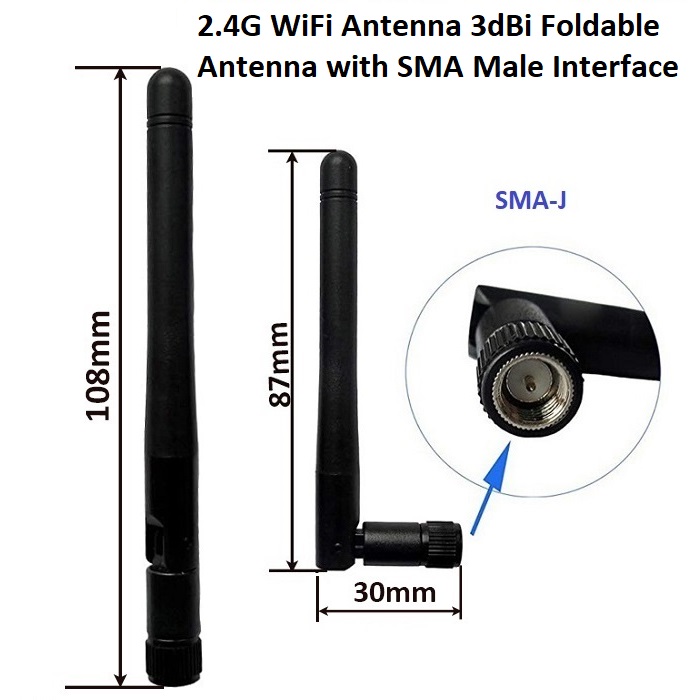

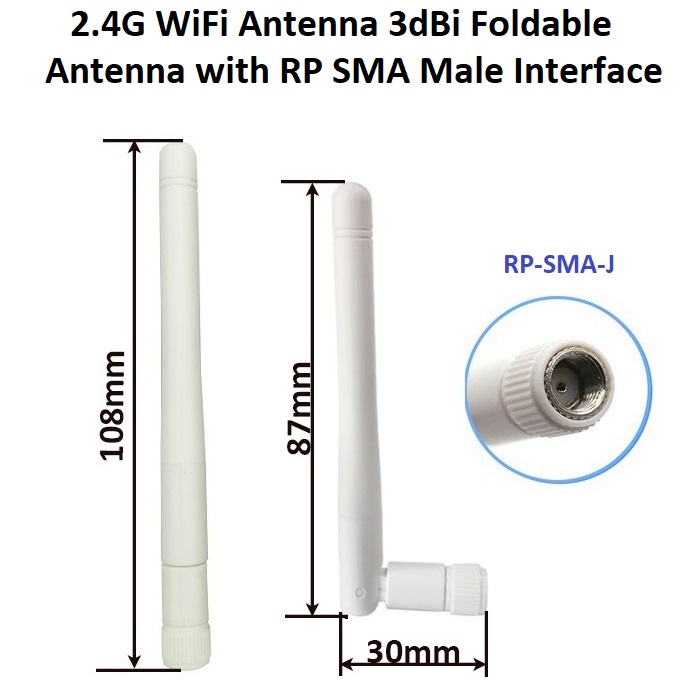

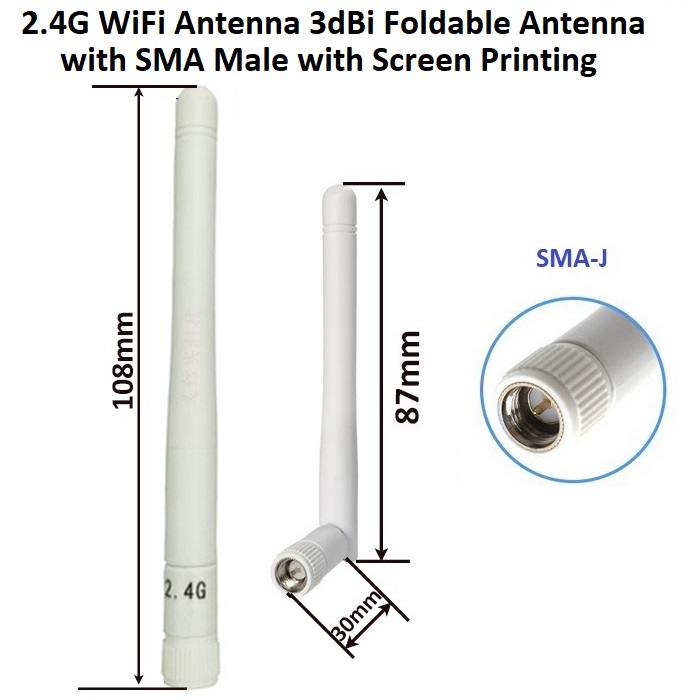

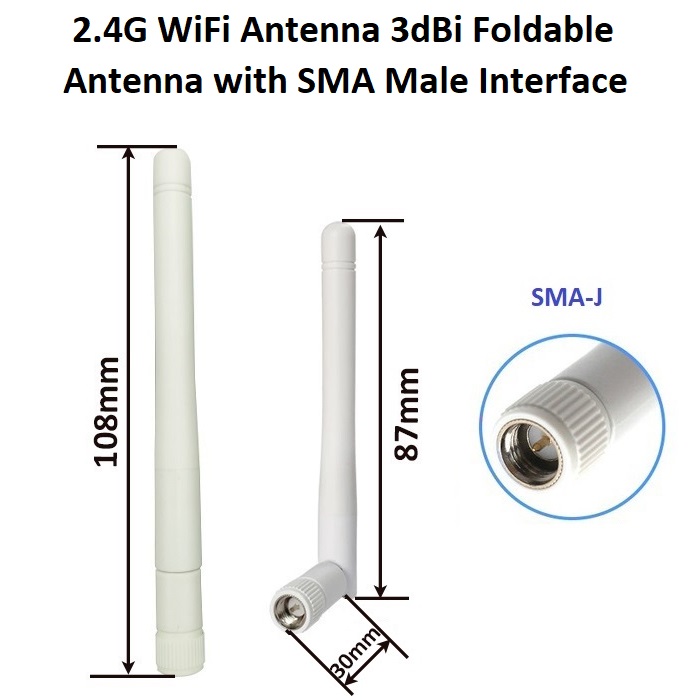

Antenna Length: 108mm(Unfolded) / 87mm(Folded)
Connector Type: SMA-J, RP-SMA-J
Operating Temperature(℃) -40~+85
| Part No. | YXS-ANT2.4G-005MBK | YXS-ANT2.4G-005FBK |
| Image |  |
 |
| Part No. | YXS-ANT2.4G-005MBK | YXS-ANT2.4G-005FBK |
| Image |  |
 |
| Part No. | YXS-ANT2.4G-005MWH | YXS-ANT2.4G-005FWH |
| Image |  |
 |
| Part No. | YXS-ANT2.4G-005MWH | YXS-ANT2.4G-005FWH |
| Image |  |
 |
