2.4G WiFi Antenna 2.4G/5.8G Dual Band Rubber Antenna Right Angle Thumb Antenna L Type SMA Antenna with RP-SMA Male Connector for Wireless Network Router/ Bluetooth/ Wifi Module/ZigBee
2.4G WiFi Antenna 2.4G/5.8G Dual Band Rubber Antenna Right Angle Thumb Antenna L Type SMA Antenna with RP-SMA Male Connector for Wireless Network Router/ Bluetooth/ Wifi Module/ZigBee
【Application】This wireless antenna works with most wireless devices, such as 5GHz 5.8GHz FPV Camera Monitor, FPV Drone Racing Quadcopeter Controller, FPV Vedio Transmitter; 5GHz 5.8GHz Wireless AV Video Audio Sender TV Transmitter Receiver HDMI Extender,Wireless Network Router, WiFi AP Hotspot Modem, WiFi USB Adapter, WiFi Signal Booster Repeater, WiFi Range Extender, Desktop PC Wireless Mini PCI Express PCIE Network Card Adapter,WiFi IP Security Camera, Remote Monitoring and Control and etc.
2.4G/5.8G Rubber Antenna
Specification
Frequency: 2400-2500MHz/4900-5900MHz
V.S.W.R. ≦ 2
Impedance (Ω): 50
Gain (dBi): 3dBi
Polarization: Vertical polarization
Radiation: Omni-directional
Connector Type: SMA Male
Antenna Length: 108mm

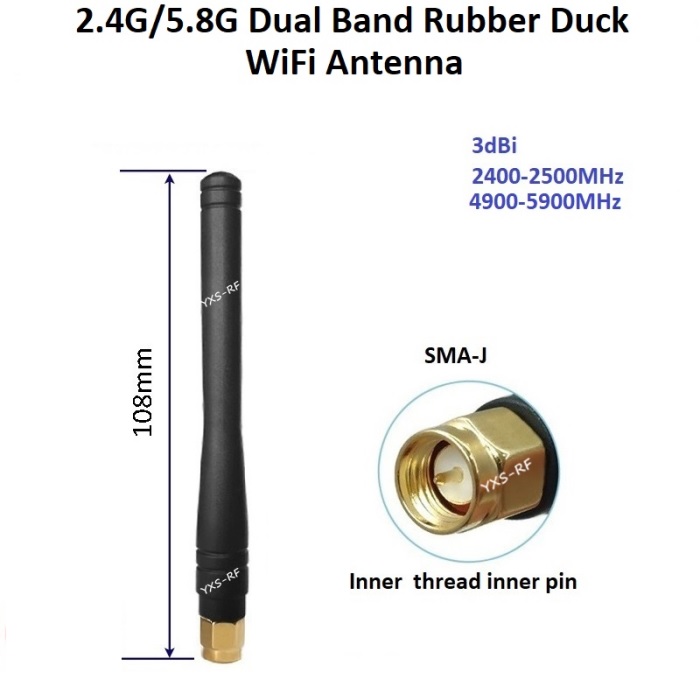

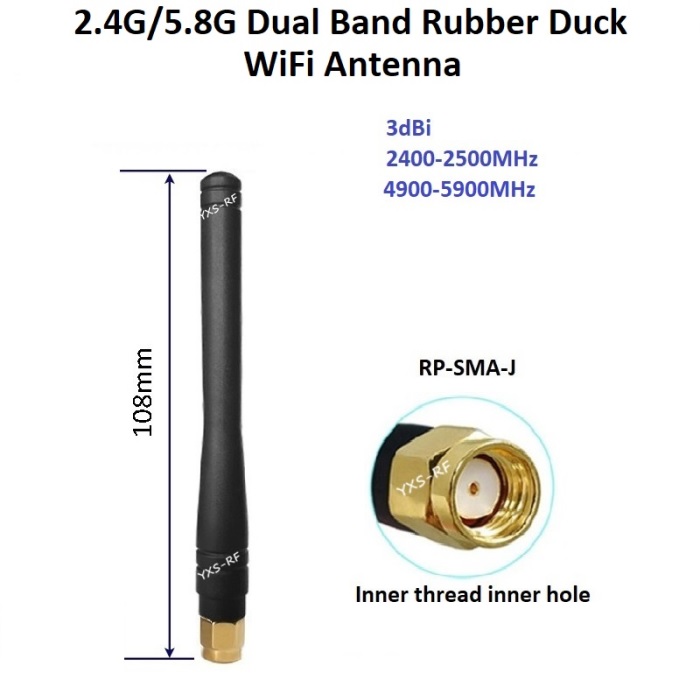

| Part No. | YXS-ANT5.8G-003MS | YXS-ANT5.8G-003FS |
| Image |  |
 |

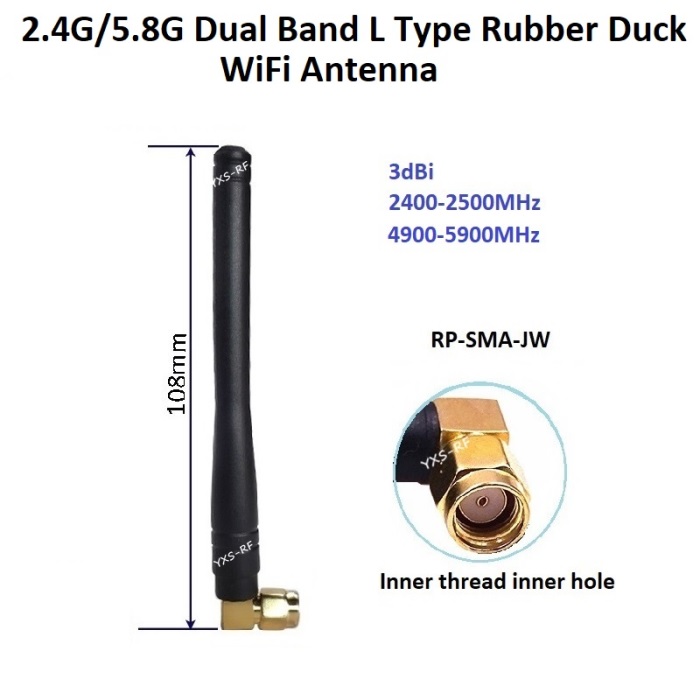

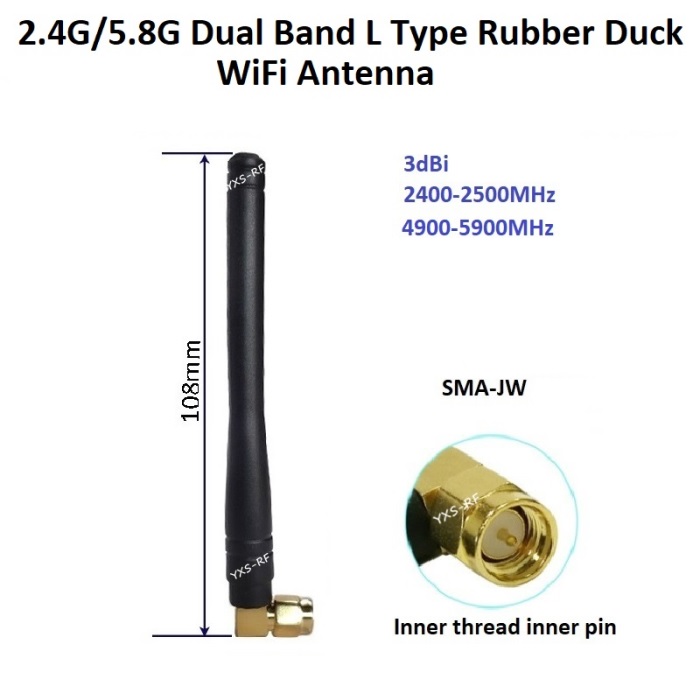

| Part No. | YXS-ANT5.8G-004ML | YXS-ANT5.8G-004FL |
| Image |  |
 |
