4G LTE Antenna 3G/GSM/GPRS/NB-IOT Antenna Built-in FPC Flexible Antenna Adhesive Mount Antenna IPEX IPX Connector/Soldering Pigtail with 0.81mm/1.13mm Cable
4G LTE Antenna Built-in FPC Flexible Antenna
Specification
Frequency Range: 780-960 MHz, 1700-1900 MHz, 1990-2700 MHz
VSWR: ≤2.0;
Gain: 4dBi/5dBi/8dBi/9dBi;
Polarization: Vertical;
Impedance: 50 ohm;
Direction: Omni-directional;
Connector: IPX1/IPX3/IPX4/ Soldering Pigtail
Cable Type: 0.81mm / 1.13mm
Cable Length: 5-100cm ( Length can be customized)
Operating Temperature: -40°С ~ +60°С
Storage Temperature: -20°С ~ +40°С
Warm Tip: The wire of IPEX 1 is φ1.13mm, the wire of IPEX 3 & IPEX 4 are φ 0.81mm.
Compatible with:
4G LTE Mobile Router, Mobile Broadband Modem Hotspot, CPE Router, Cellular Gateway;
Home Office Indoor, Vehicle Car Truck RV Bus Van Mobile Cellular;
4G LTE Cellular Trail Camera, Game Camera, Outdoor Security Camera;
4G LTE Security Camera, Celluar Surveillance Camera;
Vehicle 4G LTE Tracker, Real Time Monitor, Mobile Vehicle Car DVR MDVR Video Recorder;
Industrial 4G LTE Router, Cellular IoT Gateway, 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Metering and SMS Alarm, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker, Cellular Temperature Humidity Sensor Monitoring System, GSM Alarm System, Wireless Security Sensor Motion Detector Alert.

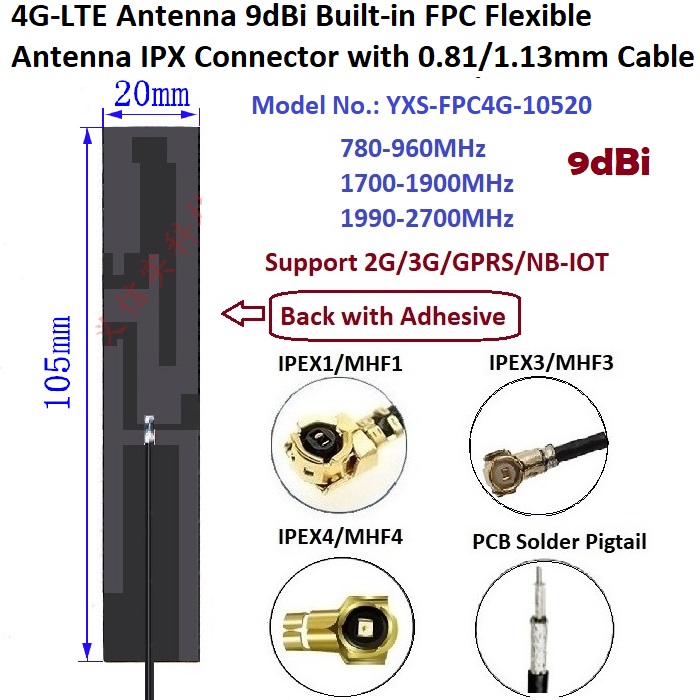

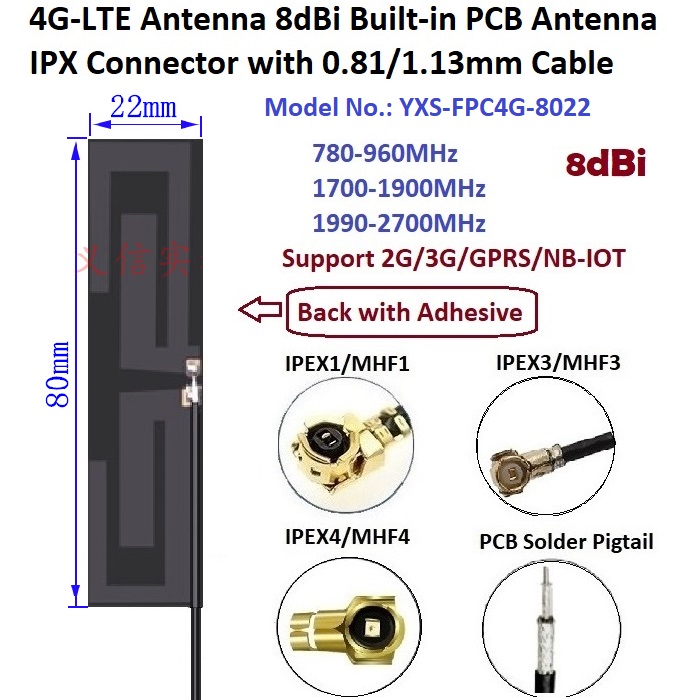

| Part No. | YXS-FPC4G-10520 | YXS-FPC4G-8022 |
| Image |  |
 |

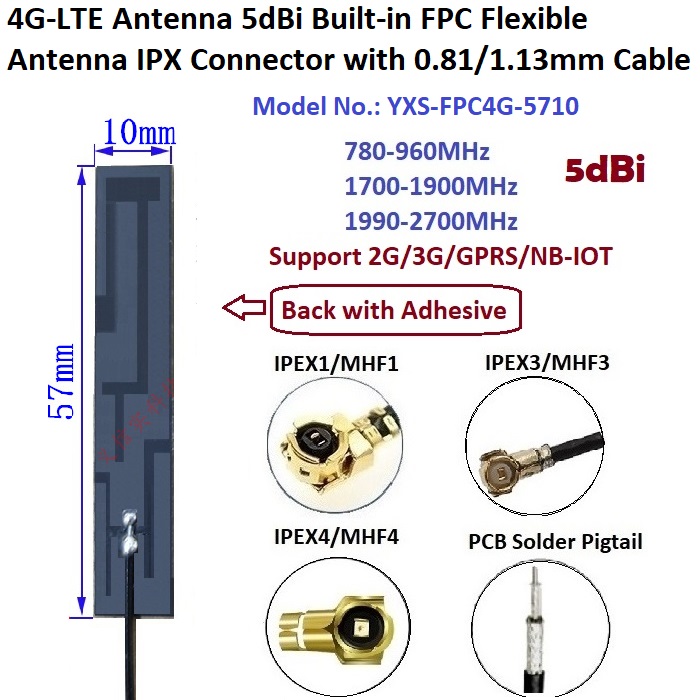

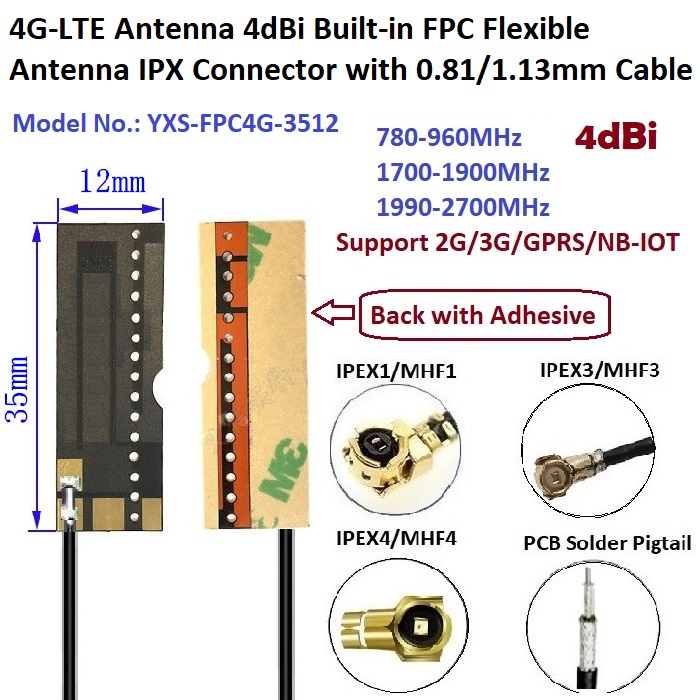

| Part No. | YXS-FPC4G-5710 | YXS-FPC4G-3512 |
| Image |  |
 |

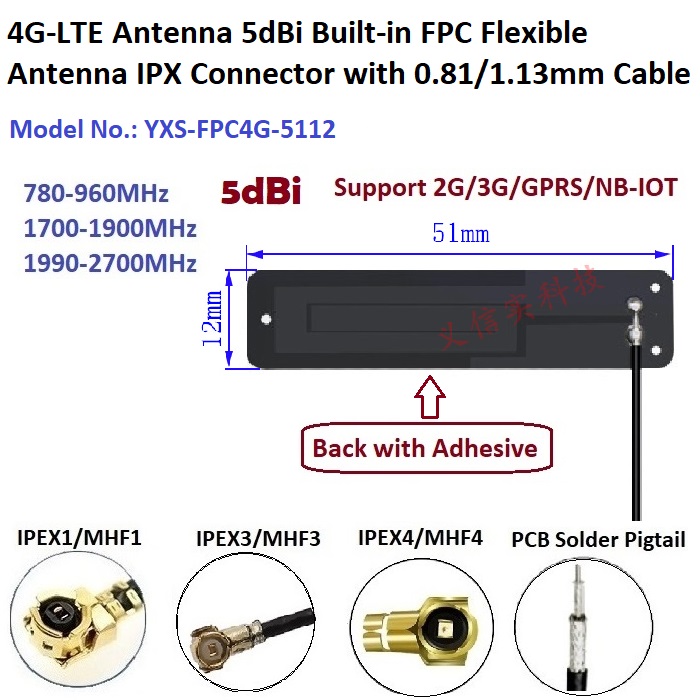

| Part No. | YXS-FPC3G-5825 | YXS-FPC4G-5112 |
| Image |  |
 |

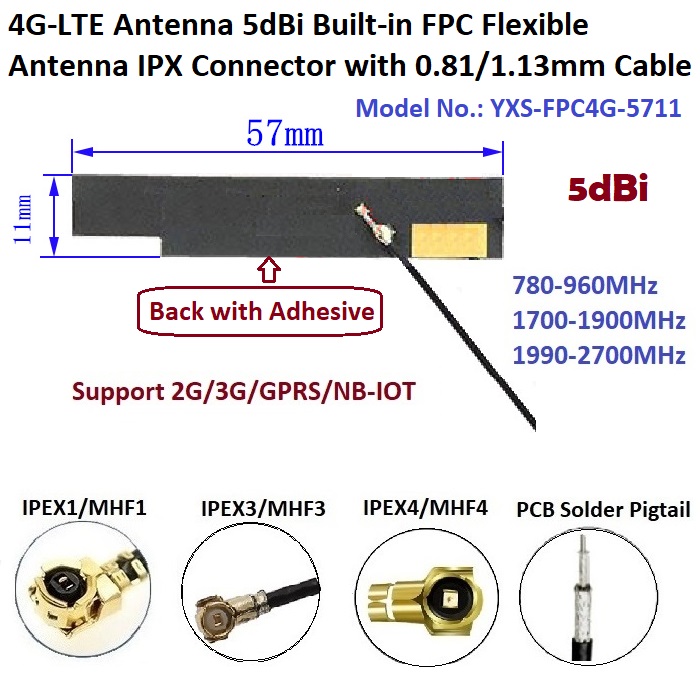

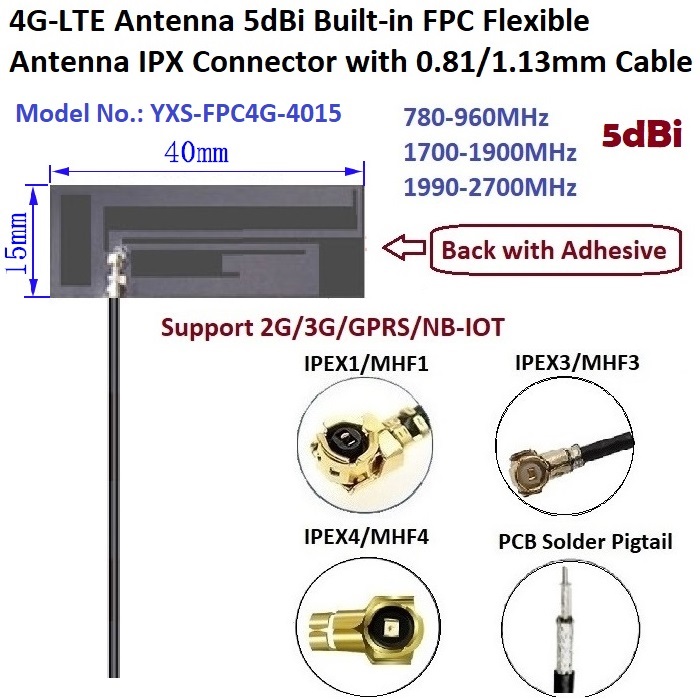

| Part No. | YXS-FPC4G-4015 | YXS-FPC4G-5711 |
| Image |  |
 |
