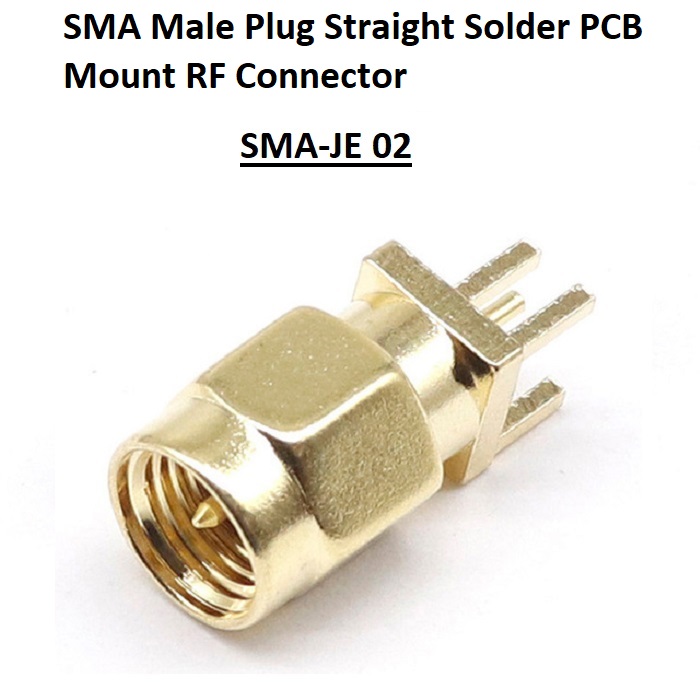

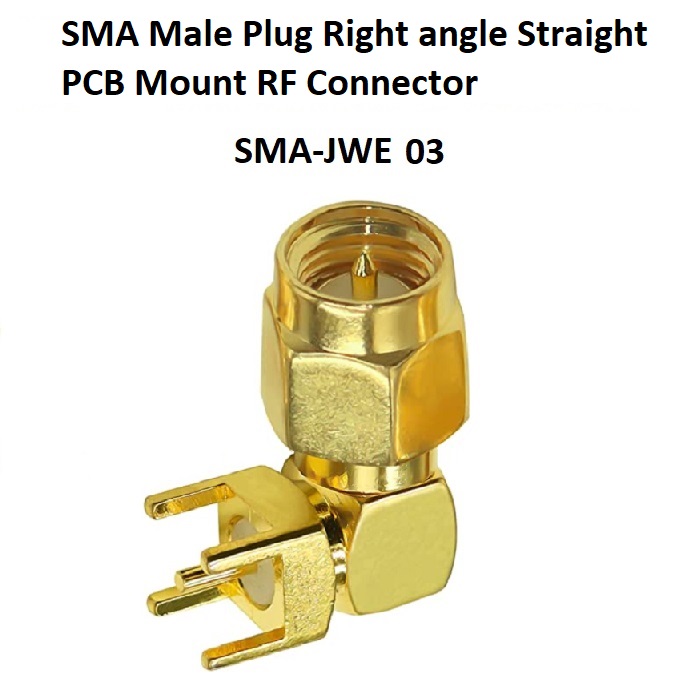

SMA-JE SMA Male Connector SMA-JWE Right Angle Connector PCB Edge Mount Connector 90 degree PCB Mount Straight RF Connector Antenna Socket RF Coaxial Connector
SMA-JE SMA Male Connector SMA-JWE Right Angle Connector PCB Edge Mount Connector 90 degree PCB Mount Straight RF Connector Antenna Socket RF Coaxial Connector
【Application】Great for many projects which involves SMA Type connector. Widely used for Antennas, Broadcast, Radios, Wi-Fi, Telecom, Coaxial cable, LMR, Wireless LAN Devices, CCTV, Microwave Applications and Digital Communication System.
Product Parameters
Color: Gold Tone
Material : All copper gold plating
Frequency range: DC 0-6ghz (flexible cable) DC 0-18ghz (semi-rigid cable)
Temperature range: - 65 ～ + 165 ° C
Contact resistance: between inner conductors ≤ 3 m Ω, between outer conductors ≤ 2 m Ω
Insulation resistance: ≥ 5000 Ω
Loss: ≤ 0.15 dB @6GHz
VSWR 1: straight flexible cable ≤ 1.10 + 0.002f, semi-rigid cable ≤ 1.05 + 0.001f
VSWR 2: bending flexible cable ≤ 1.20 + 0.003f, semi-rigid cable ≤ 1.10 + 0.001f
Working voltage: 335vrms
Withstand voltage: 1000vrms
Impedance: 50 ohm
| Part No. | YXS-CONNSMA-025 | YXS-CONNSMA-026 | YXS-CONNSMA-027 |
| Image |  |
|
 |
