90 degree SMA-KWE SMA Female Connector SMA-KHD Right Angle PCB Mount RF Connector Antenna Socket RF Coaxial Connector
90 degree SMA-KWE SMA Female Connector SMA-KHD Right Angle PCB Mount RF Connector Antenna Socket RF Coaxial Connector
【Application】Great for many projects which involves SMA Type connector£¬Widely used for Antennas, Broadcast, Radios, Wi-Fi, Telecom, Coaxial cable, LMR, Wireless LAN Devices, CCTV, Microwave Applications and Digital Communication System.
Product Parameters
Color: Gold Tone
Material : All copper gold plating
Frequency range: DC 0-6ghz (flexible cable) DC 0-18ghz (semi-rigid cable)
Temperature range: - 65 ～ + 165 ° C
Contact resistance: between inner conductors ≤ 3 m Ω, between outer conductors ≤ 2 m Ω
Insulation resistance: ≥ 5000 Ω
Loss: ≤ 0.15 dB @6GHz
VSWR 1: straight flexible cable ≤ 1.10 + 0.002f, semi-rigid cable ≤ 1.05 + 0.001f
VSWR 2: bending flexible cable ≤ 1.20 + 0.003f, semi-rigid cable ≤ 1.10 + 0.001f
Working voltage: 335vrms
Withstand voltage: 1000vrms
Impedance: 50 ohm

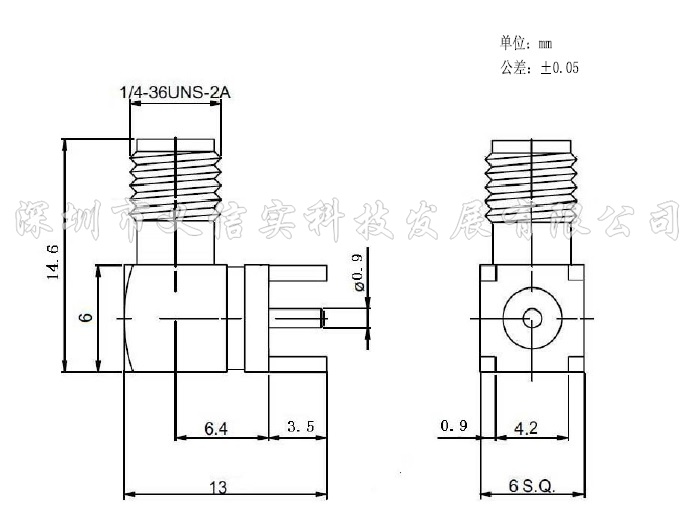

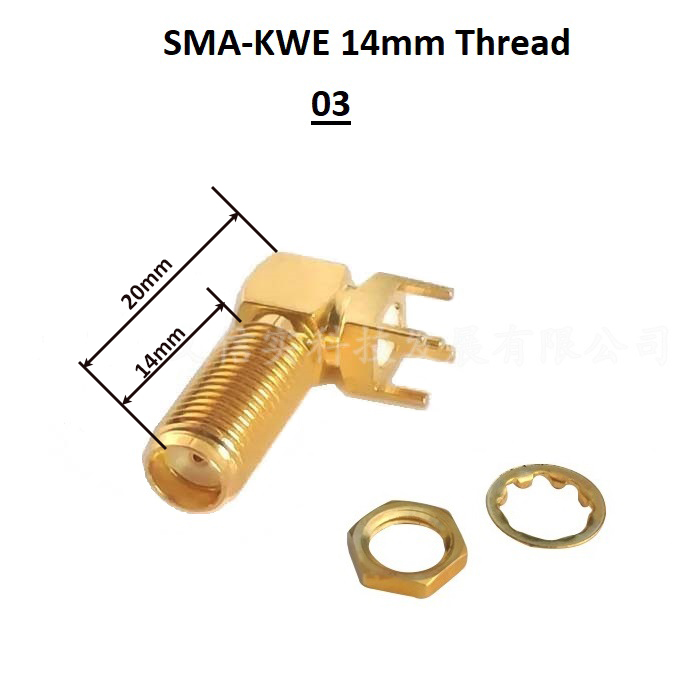

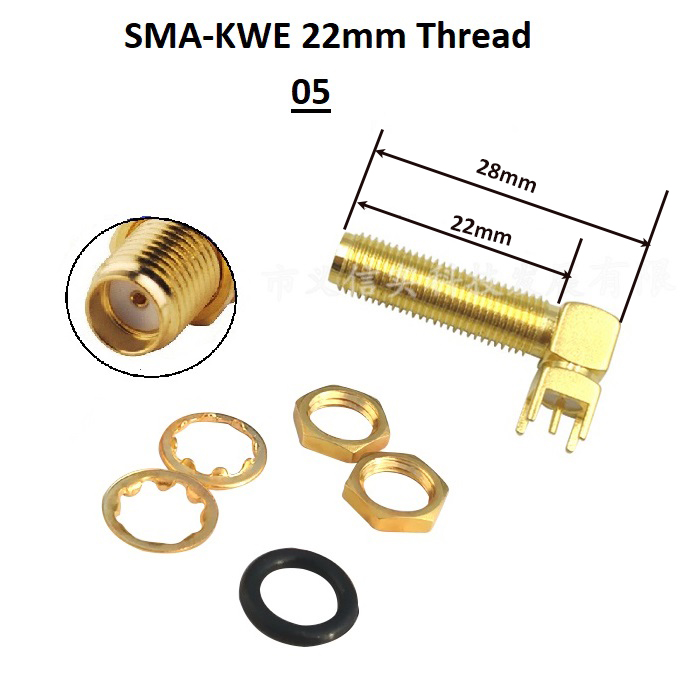

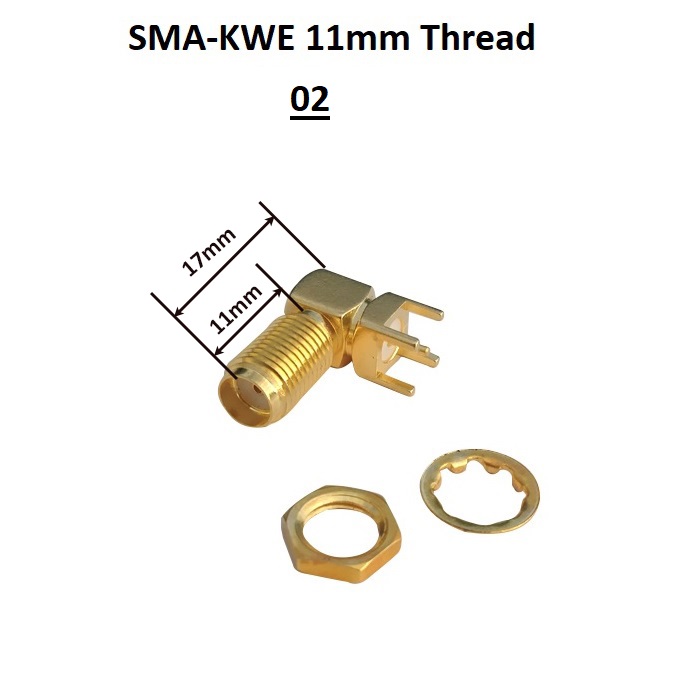

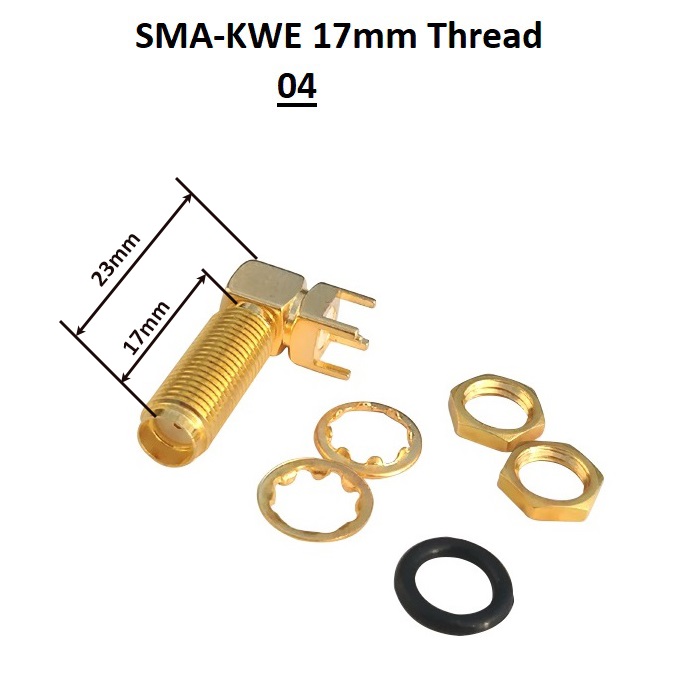

| Part No. | YXS-CONNSMA-019 | YXS-CONNSMA-020 | YXS-CONNSMA-021 |
| Image |  |
 |
 |
| Part No. | YXS-CONNSMA-022 | YXS-CONNSMA-023 | YXS-CONNSMA-024 |
| Image |  |
 |
 |
